Petrol Engine driven welder - Honda GX390 Engine - Three-phase asyncronous alternator - Three-phase generation 6 kVA - Single-phase generation 4 kVA - Max welding current: 155A

The engine-driven welder TS-200 BS/EL is a professional machine with electronic control of the welding current capable of delivering up to 155 A with a duty cycle of 60%.

Equipped with an 11.1 HP HONDA GX-390 petrol engine and an asynchronous alternator, it can function simultaneously as a welder, a 12V battery boost function and as a three-phase and single-phase electrical generator up to 6 kVA.

Also available is an optional remote welding control allowing welding current adjustment up to 20 metres from the welder. The TS-200 BS/EL is able to weld any kind of electrode (rutile, basic, cellulose) up to 3.25 mm in diameter.

An engine-driven welder suitable for a wide range of uses from maintenance to site welding fabrication.

In according with CE regulation

Accessories

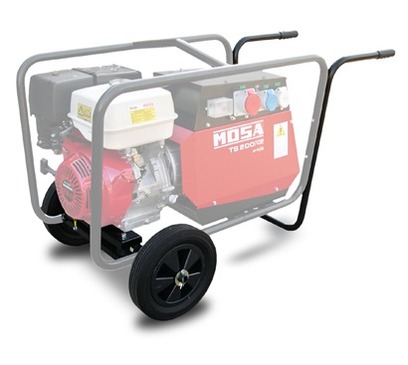

• CTM200 Trolley

• TC2-TC50 Remote Control

Technical Properties

ENGINE
Model	Honda GX 390
Fuel	Petrol
Starter	Recoil
Output	8.2 kW (11.1 HP)
Cylinders / Displacement	1 / 389 cm3
Speed	3000 rpm
Cooled	Air
WELDING
Current range, continuous	20-155 A
Duty cycle	155 A 60% 120 A 100%
Open circuit voltage	65 V
GENERAL
Dry weight	106 kg
Dimensions	870x525x590 mm
Acoustic power LwA (pressure LpA):	98 dB(A) (73 dB(A) @ 7 m)

Product Brochure
