ProHeat™ 35 Air-Cooled Cables for Induction Heating Welding

Induction Heating Welding

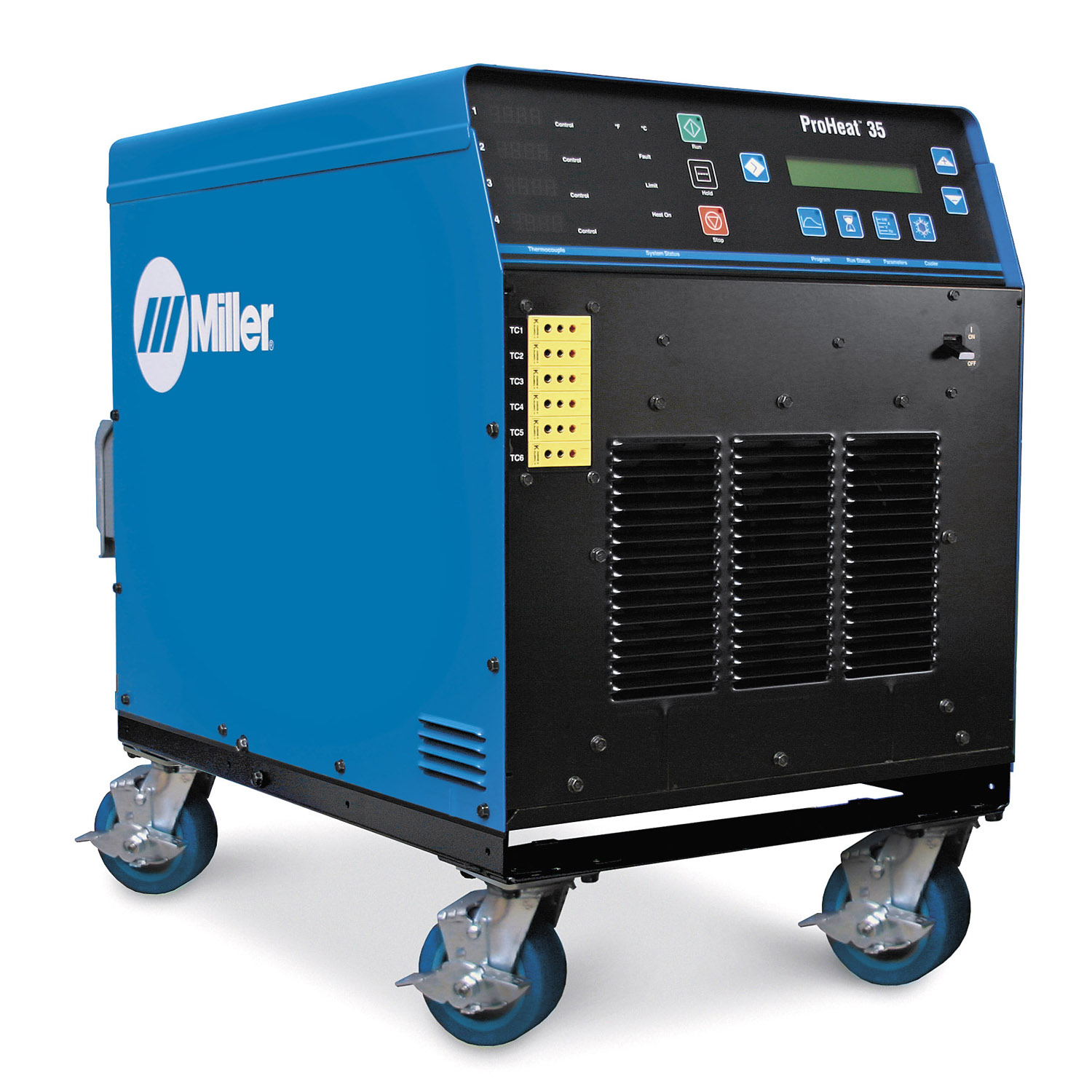

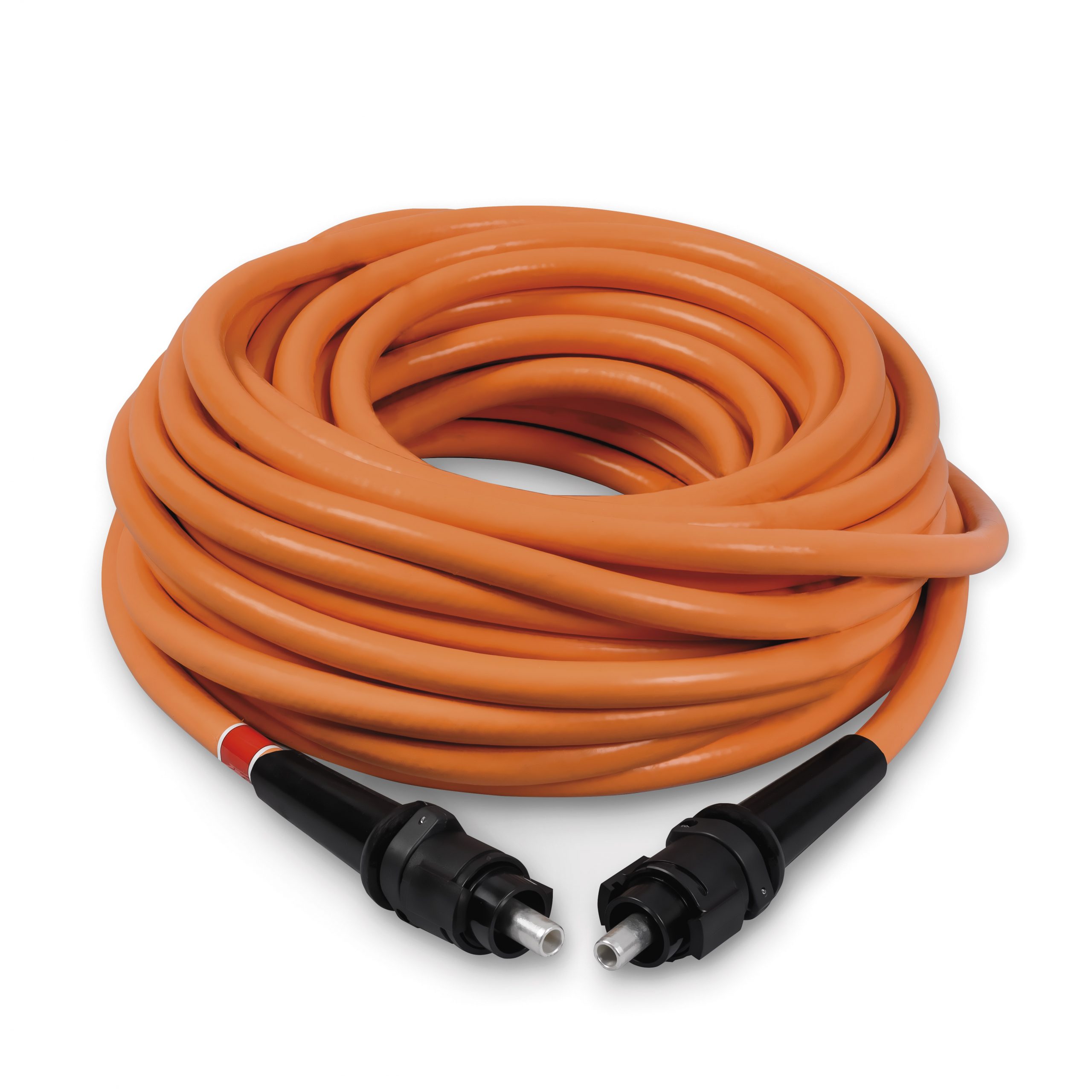

The ProHeat 35 air-cooled induction heating system is specifically designed for preheating applications up to 204°C (400°F). Air-cooled cables are available in lengths of 9.1 m (30 foot), 15.2 m (50 foot) or 24.4 m (80 foot) for flexible configurations.

Improved working environment is created during welding. Welders are not exposed to open flame, explosive gases and hot elements associated with fuel gas heating and resistance heating.
Easy setup with flexibility to fit a variety of pipe diameters and plate lengths.
Uniform heating is maintained along and through the heat zone by using induction heat within the material. The surface of the part is not marred by localized conducted heat at higher than specified temperatures.
Time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

proheat 35, induction heating, miller welding

Process Piping Systems
Refineries and Petrochemical Plants
Pressure Vessel and Tank Manufacturing
Power Plant Pipelines
Structural Steel and Heavy Construction Works

Input Voltage	400–460 V / 460–575 V
Input Phase	3-phase
Input Hz	50/60 Hz / 60 Hz
Amperage Range	400 V: 60 amps 460 V: 50 amps 575 V: 40 amps
Rated Output	35 kW at 100% duty cycle
Maximum Preheat Temperature	204°C (400°F)
Net Width	552 mm (21.75 in.)
Net Height	699 mm (27.5 in.)
Net Length	933 mm (36.75 in.)
Net Weight	Net: 103 kg (227 lb.) Ship: 120 kg (265 lb.)
