Diesel Engine driven welder - KOHLER KD 440 Engine - Three-phase asyncronous alternator - Three-phase generation 6 kVA - Single-phase generation 5 kVA - Max welding current: 170A

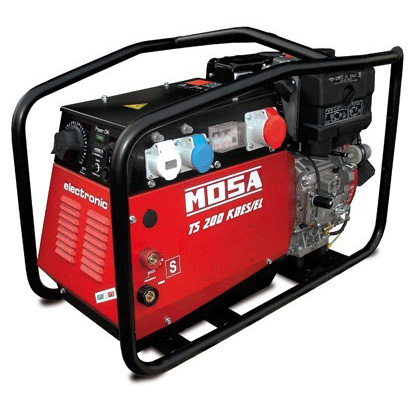

The engine-driven welder TS-200 KDES/EL is a professional machine with electronic control of the welding current capable of delivering up to 170 A with a duty cycle of 60%.

Equipped with a KOHLER KD 440 diesel engine with electrical start-up and an asynchronous alternator, it can be used simultaneously as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.

Also available is an optional remote welding control allowing welding current adjustment up to 20 metres from the welder. The TS-200 KDES/EL is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm in diameter.

An engine driven welder suitable for light fabrication work and for welding pipes.

In according with CE regulation

Accessories

• TC2-TC50 Remote Control

Technical Properties

ENGINE
Model	KOHLER KD 440
Fuel	Diesel
Starter	Electric
Output	6.8 kW (9.2 HP)
Cylinders / Displacement	1 / 442 cm3
Speed	3000 rpm
Cooled	Air
WELDING
Current range, continuous	20-170 A
Duty cycle	170A 60% 130A 100%
Open circuit voltage	65 V
GENERAL
Dry weight	145 kg
Dimensions	900x550x620 mm
Acoustic power LwA (pressure LpA):	102 dB(A) (77 dB(A) @ 7 m)
