Diesel Engine driven welder - YANMAR 3 TNV 76 Engine - Three-phase asyncronous alternator - Three-phase generation 12 kVA - Single-phase generation 7 kVA - Max welding current: 350A

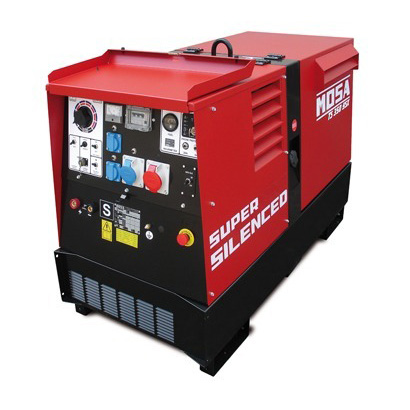

The engine-driven welder TS 350 YSX-BC is a professional machine with electronic control of the welding current capable of delivering up to 350 A with a duty cycle of 60%.

Equipped with a Yanmar 3 TNV 76 diesel engine (water-cooled) and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 12 kVA.

The welding current is continuous and can weld any kind of electrode (rutile, basic, cellulose) up to 6 mm in diameter.

The characteristic BC (base current) is particularly suitable for vertical down pipe welding. This is a super silent engine-driven welder with compact canopy, specifically designed to minimize sound emissions.

Suitable for a wide range of uses including mobile welding, site fabrication, maintenance and pipeline construction.

In according with CE regulation

Accessories

• CTL400 Trolley

• CTV4 Trolley

• RCPL Remote Control

• TC2-TC50 Remote Control

Technical Properties

ENGINE
Model	Yanmar 3 TNV 76
Fuel	Diesel
Starter	Electric
Output	16.5 kW (25.4 HP)
Cylinders / Displacement	3 / 1116 cm3
Speed	3000 rpm
Cooled	Water
WELDING
Current range, continuous	20-350 A
Duty cycle	350A-35%; 320A-60% 270A-100%
Open circuit voltage	65 V
GENERAL
Dry weight	530 kg
Dimensions	1610x720x1110 mm
Acoustic power LwA (pressure LpA):	92 dB(A) (67 dB(A) @ 7m)
