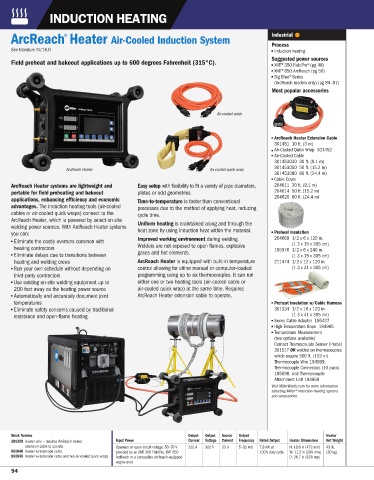

                          INDUCTION HEATING


                               ®
              ArcReach Heater Air-Cooled Induction System                                         Industrial
                                                                                                  Process
              See literature IN/16.0                                                              Induction heating
                                                                                                  Suggested power sources
              Field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C).
                                                                                                  XMT® 350 FieldPro ™ (pg 48)
                                                                                                  XMT® 650 ArcReach (pg 50)
                                                                                                  Big Blue® Series
                                                                                                  (ArcReach models only) (pg 84–87)
                                                                                                  Most popular accessories


                                                                                Air-cooled cable



                                                                                                  ArcReach Heater Extension Cable
                                                                                                  301451  10 ft. (3 m)
                                                                                                  Air-Cooled Quick Wrap  301452
                                                                                                  Air-Cooled Cable
                                                                                                  301453030  30 ft. (9.1 m)
                                                                                                  301453050  50 ft. (15.2 m)
                               ArcReach Heater                                Air-cooled quick wrap
                                                                                                  301453080  80 ft. (24.4 m)
                                                                                                  Cable Cover
              ArcReach Heater systems are lightweight and   Easy setup with flexibility to fit a variety of pipe diameters,  204611  30 ft. (9.1 m)
              portable for field preheating and bakeout  plates or odd geometries.                204614  50 ft. (15.2 m)
                                                                                                  204620  80 ft. (24.4 m)
              applications, enhancing efficiency and economic  Time-to-temperature is faster than conventional
              advantages. The induction heating tools (air-cooled  processes due to the method of applying heat, reducing
              cables or air-cooled quick wraps) connect to the  cycle time.
              ArcReach Heater, which is powered by select on-site  Uniform heating is maintained along and through the
              welding power sources. With ArcReach Heater systems  heat zone by using induction heat within the material.
              you can:                                                                            Preheat Insulation
                                                      Improved working environment during welding.   204669  1/2 x 6 x 120 in.
              Eliminate the costly overruns common with
                                                      Welders are not exposed to open flames, explosive                (1.3 x 15 x 305 cm)
              heating contractors                                                                 195376  1/2 x 6 x 240 in.
                                                      gases and hot elements.
              Eliminate delays due to transitions between                                                        (1.3 x 15 x 305 cm)
              heating and welding crews               ArcReach Heater is equipped with built-in temperature  211474  1/2 x 12 x 120 in.
              Run your own schedule without depending on   control allowing for either manual or computer-loaded                (1.3 x 31 x 305 cm)
              third-party contractors                 programming using up to six thermocouples. It can run
              Use existing on-site welding equipment up to   either one or two heating tools (air-cooled cable or
              200 feet away as the heating power source   air-cooled quick wrap) at the same time. Requires
              Automatically and accurately document joint  ArcReach Heater extension cable to operate.
              temperatures                                                                        Preheat Insulation w/Cable Harness
              Eliminate safety concerns caused by traditional                                     301334  1/2 x 16 x 120 in.
              resistance and open-flame heating                                                                  (1.3 x 41 x 305 cm)
                                                                                                  Series Cable Adapter  195437
                                                                                                  High-Temperature Rope  194965
                                                                                                  Temperature Measurement
                                                                                                  (two options available)
                                                                                                  Contact Thermocouple Sensor (Probe)
                                                                                                  301517 OR welded on thermocouples
                                                                                                  which require 500 ft. (152 m)
                                                                                                  Thermocouple Wire 194999,
                                                                                                  Thermocouple Connectors (10 pack)
                                                                                                  195098, and Thermocouple
                                                                                                  Attachment Unit 194959
                                                                                                  Visit MillerWelds.com for more information
                                                                                                  selecting Miller®induction heating options
                                                                                                  and accessories.






              Stock Number                                             Output  Output  Source  Output              Heater
              301390  Heater only — requires ArcReach Heater   Input Power  Current  Voltage  Current  Frequency  Rated Output  Heater Dimensions  Net Weight
                            extension cable to operate  Operates on open-circuit voltage: 50–70 V  200 A  300 V  33 A  5–30 kHz  7.8 kW at   H: 18.6 in (472 mm)  43 lb.
              951848  Heater w/extension cable  provided by an XMT 350 FieldPro, XMT 650      100% duty cycle  W: 11.2 in (285 mm)  (20 kg)
              951849  Heater w/extension cable and two air-cooled quick wraps  ArcReach or a compatible ArcReach-equipped  D: 26.7 in (678 mm)
                                               engine drive
              94
