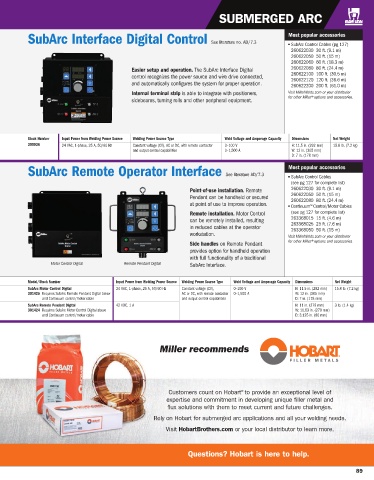

Page 89 - millerwelds catalog_2022

A FLE24 Cat P 89 Sub Arc.qxp_Sub Arc 1/11/24 5:50 PM Page 1

SUBMERGED ARC

Most popular accessories
SubArc Interface Digital Control See literature no. AD/7.3
SubArc Control Cables (pg 127)
260622030 30 ft. (9.1 m)
260622050 50 ft. (15 m)
260622060 60 ft. (18.3 m)
Easier setup and operation. The SubArc Interface Digital 260622080 80 ft. (24.4 m)
control recognizes the power source and wire drive connected, 260622100 100 ft. (30.5 m)
260622120 120 ft. (36.6 m)
and automatically configures the system for proper operation. 260622200 200 ft. (61.0 m)
Internal terminal strip is able to integrate with positioners, Visit MillerWelds.com or your distributor
for other Miller®options and accessories.
sidebeams, turning rolls and other peripheral equipment.

Stock Number Input Power from Welding Power Source Welding Power Source Type Weld Voltage and Amperage Capacity Dimensions Net Weight
300936 24 VAC, 1-phase, 25 A, 50/60 Hz Constant voltage (CV), AC or DC, with remote contactor 0–100 V H: 11.5 in. (292 mm) 15.8 lb. (7.2 kg)
and output control capabilities 0–1,500 A W: 12 in. (305 mm)
D: 7 in. (178 mm)
Most popular accessories
SubArc Remote Operator Interface See literature AD/7.3
SubArc Control Cables
(see pg 127 for complete list)
260622030 30 ft. (9.1 m)
Point-of-use installation. Remote
260622050 50 ft. (15 m)
Pendant can be handheld or secured
260622080 80 ft. (24.4 m)
at point of use to improve operation.
Continuum ™ Control/Motor Cables
Remote installation. Motor Control (see pg 127 for complete list)
263368015 15 ft. (4.6 m)
can be remotely installed, resulting
263368025 25 ft. (7.6 m)
in reduced cables at the operator
263368050 50 ft. (15 m)
workstation.
Visit MillerWelds.com or your distributor
for other Miller®options and accessories.
Side handles on Remote Pendant
provides option for handheld operation
with full functionality of a traditional
Motor Control Digital Remote Pendant Digital SubArc Interface.
Model/Stock Number Input Power from Welding Power Source Welding Power Source Type Weld Voltage and Amperage Capacity Dimensions Net Weight
SubArc Motor Control Digital 24 VAC, 1-phase, 25 A, 50/60 Hz Constant voltage (CV), 0–100 V H: 11.5 in. (292 mm) 15.8 lb. (7.2 kg)
301425 Requires SubArc Remote Pendant Digital below AC or DC, with remote contactor 0–1,500 A W: 12 in. (305 mm)
and Continuum control/motor cable and output control capabilities D: 7 in. (178 mm)
SubArc Remote Pendant Digital 42 VDC, 1 A H: 11 in. (279 mm) 3 lb. (1.4 kg)
301424 Requires SubArc Motor Control Digital above W: 10.63 in. (270 mm)
and Continuum control/motor cable D: 3.125 in. (80 mm)

Customers count on Hobart to provide an exceptional level of
®
expertise and commitment in developing unique filler metal and
flux solutions with them to meet current and future challenges.

Rely on Hobart for submerged arc applications and all your welding needs.
Visit HobartBrothers.com or your local distributor to learn more.
