AUTOMATION

To order automation solutions: Contact local Miller district manager For automation service/parts: Call 1-630-653-6819
or email MWA.Sales@MillerWelds.com or email MWAService@MillerWelds.com

™

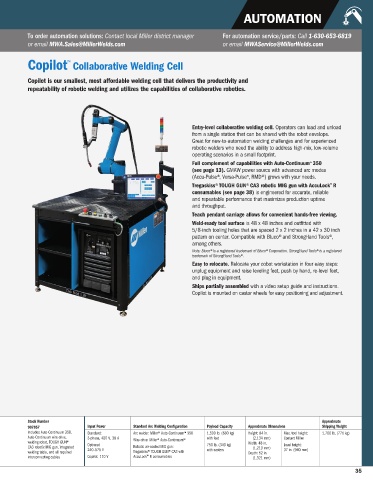

Copilot Collaborative Welding Cell

Copilot is our smallest, most affordable welding cell that delivers the productivity and
repeatability of robotic welding and utilizes the capabilities of collaborative robotics.

Entry-level collaborative welding cell. Operators can load and unload
from a single station that can be shared with the robot envelope.
Great for new-to-automation welding challenges and for experienced
robotic welders who need the ability to address high-mix, low-volume
operating scenarios in a small footprint.
Full complement of capabilities with Auto-Continuum 350
™
(see page 13). GMAW power source with advanced arc modes
(Accu-Pulse®, Versa-Pulse , RMD®) grows with your needs.
™
Tregaskiss® TOUGH GUN® CA3 robotic MIG gun with AccuLock R
™
consumables (see page 38) is engineered for accurate, reliable
and repeatable performance that maximizes production uptime
and throughput.
Teach pendant carriage allows for convenient hands-free viewing.
Weld-ready tool surface is 48 x 48 inches and outfitted with
5/8-inch tooling holes that are spaced 2 x 2 inches in a 42 x 30 inch
pattern on center. Compatible with Bluco® and StrongHand Tools®,
among others.
Note: Bluco® is a registered trademark of Bluco® Corporation. StrongHand Tools® is a registered
trademark of StrongHand Tools® .
Easy to relocate. Relocate your cobot workstation in four easy steps:
unplug equipment and raise leveling feet, push by hand, re-level feet,
and plug in equipment.
Ships partially assembled with a video setup guide and instructions.
Copilot is mounted on castor wheels for easy positioning and adjustment.

Stock Number Approximate
907857 Input Power Standard Arc Welding Configuration Payload Capacity Approximate Dimensions Shipping Weight
Includes Auto-Continuum 350, Standard: Arc welder: Miller® Auto-Continuum ™ 350 1,500 lb. (680 kg) Height: 84 in. Max. tool height: 1,700 lb. (771 kg)
Auto-Continuum wire drive, 3-phase, 480 V, 30 A with feet (2,134 mm) Contact Miller
welding robot, TOUGH GUN® Wire drive: Miller® Auto-Continuum ™ Width: 48 in.
CA3 robotic MIG gun, integrated Optional: Robotic air-cooled MIG gun: 750 lb. (340 kg) (1,219 mm) Load height:
welding table, and all required 240–575 V Tregaskiss® TOUGH GUN® CA3 with with casters Depth: 52 in. 37 in. (940 mm)
interconnecting cables Copilot: 110 V AccuLock ™ R consumables (1,321 mm)
