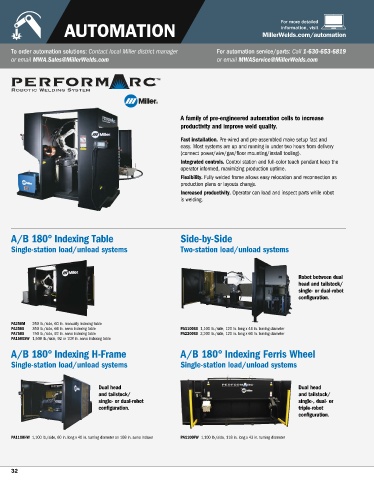

Page 32 - millerwelds catalog_2022

A FLE24 Cat P 32 Automation.qxp_Automation Intro 1/11/24 5:28 PM Page 1

For more detailed
AUTOMATION MillerWelds.com/automation
information, visit

To order automation solutions: Contact local Miller district manager For automation service/parts: Call 1-630-653-6819
or email MWA.Sales@MillerWelds.com or email MWAService@MillerWelds.com

A family of pre-engineered automation cells to increase
productivity and improve weld quality.
Fast installation. Pre-wired and pre-assembled make setup fast and
easy. Most systems are up and running in under two hours from delivery
(connect power/wire/gas/floor mounting/install tooling).
Integrated controls. Control station and full-color teach pendant keep the
operator informed, maximizing production uptime.
Flexibility. Fully welded frame allows easy relocation and reconnection as
production plans or layouts change.
Increased productivity. Operator can load and inspect parts while robot
is welding.

A/B 180°Indexing Table Side-by-Side
Single-station load/unload systems Two-station load/unload systems

Robot between dual
head and tailstock/
single- or dual-robot
configuration.

PA250M 250 lb./side, 60 in. manually indexing table
PA350S 350 lb./side, 66 in. servo indexing table PA1100SS 1,100 lb./side, 120 in. long x 44 in. turning diameter
PA750S 750 lb./side, 92 in. servo indexing table PA2200SS 2,200 lb./side, 120 in. long x 66 in. turning diameter
PA1500SW 1,500 lb./side, 92 or 108 in. servo indexing table
A/B 180°Indexing H-Frame A/B 180° Indexing Ferris Wheel
Single-station load/unload systems Single-station load/unload systems

Dual head Dual head
and tailstock/ and tailstock/
single- or dual-robot single-, dual- or
configuration. triple-robot
configuration.

PA1100HW 1,100 lb./side, 60 in. long x 40 in. turning diameter on 108 in. servo indexer PA1100FW 1,100 lb./side, 118 in. long x 43 in. turning diameter
