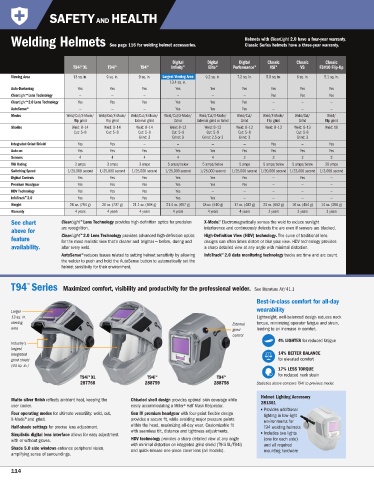

SAFETY AND HEALTH

Helmets with ClearLight 2.0 have a four-year warranty.
Welding Helmets See page 116 for welding helmet accessories. Classic Series helmets have a three-year warranty.

Digital Digital Digital Classic Classic Classic
T94i XL T94i ™ T94 ™ Infinity ™ Elite ™ Performance ™ VSi ™ VS FS#10 Flip-Up
™
Viewing Area 13 sq. in. 9 sq. in. 9 sq. in. Largest Viewing Area 9.2 sq. in. 7.2 sq. in. 5.9 sq. in. 6 sq. in. 5.1 sq. in.
13.4 sq. in.
Auto-Darkening Yes Yes Yes Yes Yes Yes Yes Yes Yes
ClearLight ™ Lens Technology — — — — — — Yes Yes Yes
ClearLight ™ 2.0 Lens Technology Yes Yes Yes Yes Yes Yes — — —
AutoSense ™ — — — Yes Yes Yes — — —
Modes Weld/Cut/X-Mode/ Weld/Cut/X-Mode/ Weld/Cut/X-Mode/ Weld/Cut/X-Mode/ Weld/Cut/X-Mode/ Weld/Cut/ Weld/X-Mode/ Weld/Cut/ Weld/
Flip grind Flip grind External grind Grind External grind or Grind Grind Flip grind Grind Flip grind
Shades Weld: 8–14 Weld: 8–14 Weld: 8–14 Weld: 8–13 Weld: 8–13 Weld: 8–13 Weld: 8–13 Weld: 8–13 Weld: 10
Cut: 5–8 Cut: 5–8 Cut: 5–8 Cut: 5–8 Cut: 5–8 Cut: 5–8 Cut: 5–8
Grind: 3 Grind: 3 Grind: 2.5 or 3 Grind: 3 Grind: 3
Integrated Grind Shield Yes Yes — — — — Yes — Yes
Auto-on Yes Yes Yes Yes Yes Yes Yes Yes Yes
Sensors 4 4 4 4 4 3 3 2 2
TIG Rating 3 amps 3 amps 3 amps 5 amps/below 5 amps/below 5 amps 5 amps/below 5 amps/below 20 amps
Switching Speed 1/25,000 second 1/25,000 second 1/25,000 second 1/25,000 second 1/25,000 second 1/25,000 second 1/20,000 second 1/23,000 second 1/3,600 second
Digital Controls Yes Yes Yes Yes Yes Yes — Yes —
Premium Headgear Yes Yes Yes Yes Yes Yes — — —
HDV Technology Yes Yes Yes Yes — — — — —
InfoTrack ™ 2.0 Yes Yes Yes Yes Yes — — — —
Weight 28 oz. (794 g) 26 oz. (737 g) 21.1 oz. (598 g) 21.4 oz. (607 g) 18 oz. (510 g) 17 oz. (482 g) 23 oz. (652 g) 16 oz. (454 g) 14 oz. (396 g)
Warranty 4 years 4 years 4 years 4 years 4 years 4 years 3 years 3 years 3 years
™
See chart ClearLight Lens Technology provides high-definition optics for precision X-Mode. ™ Electromagnetically senses the weld to reduce sunlight
arc recognition. interference and continuously detects the arc even if sensors are blocked.
above for
™
ClearLight 2.0 Lens Technology provides advanced high-definition optics High-Definition View (HDV) technology. The curve of traditional lens
feature for the most realistic view that’s clearer and brighter — before, during and designs can often times distort or blur your view. HDV technology provides
availability. after every weld. a sharp detailed view at any angle with minimal distortion.
AutoSense ™ reduces issues related to setting helmet sensitivity by allowing InfoTrack ™ 2.0 data monitoring technology tracks arc time and arc count.
the welder to push and hold the AutoSense button to automatically set the
helmet sensitivity for their environment.

™
T94 Series Maximized comfort, visibility and productivity for the professional welder. See literature AY/41.1
Best-in-class comfort for all-day
wearability
Larger
13-sq. in. Lightweight, well-balanced design reduces neck
viewing torque, minimizing operator fatigue and strain,
External
area leading to an increase in comfort.
grind
control
4% LIGHTER for reduced fatigue
Industry’s
largest
integrated 14% BETTER BALANCE
grind shield for elevated comfort
(44 sq. in.)
17% LESS TORQUE
for reduced neck strain
T94i XL T94i ™ T94 ™
™
287768 288759 288758 Statistics above compare T94i to previous model.
Helmet Lighting Accessory
Matte silver finish reflects ambient heat, keeping the Chiseled shell design provides optimal skin coverage while 281361
user cooler. easily accommodating a Miller® Half Mask Respirator.
Provides additional
Four operating modes for ultimate versatility: weld, cut, Gen IV premium headgear with four-point flexible design
lighting in low-light
X-Mode ™ and grind. provides a secure fit, while avoiding major pressure points
environments for
Half-shade settings for precise lens adjustment. within the head, maximizing all-day wear. Customizable fit T94 welding helmets
with seamless tilt, distance and tightness adjustments.
Simplistic digital lens interface allows for easy adjustment Includes two lights
with or without gloves. HDV technology provides a sharp detailed view at any angle (one for each side)
with minimal distortion on integrated grind shield (T94i XL/T94i) and all required
Shade 5.0 side windows enhance peripheral vision, and quick-release one-piece cover lens (all models). mounting hardware
amplifying sense of surroundings.
