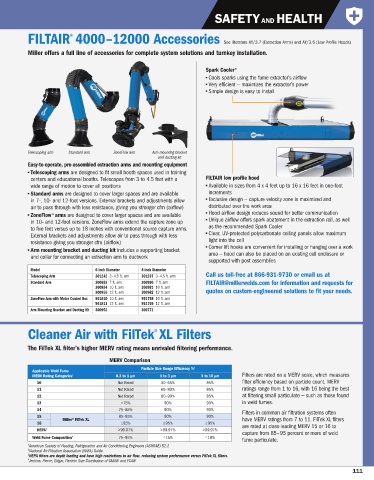

SAFETY AND HEALTH

®
FILTAIR 4000–12000 Accessories See literature AY/3.7 (Extraction Arms) and AY/3.6 (Low Profile Hoods)
Miller offers a full line of accessories for complete system solutions and turnkey installation.

Spark Cooler ®
Cools sparks using the fume extractor’s airflow
Very efficient — maximizes the extractor’s power
Simple design is easy to install

Telescoping arm Standard arm ZoneFlow arm Arm mounting bracket
and ducting kit
Easy-to-operate, pre-assembled extraction arms and mounting equipment
Telescoping arms are designed to fit small booth spaces used in training
centers and educational booths. Telescopes from 3 to 4.5 feet with a FILTAIR low profile hood
wide range of motion to cover all positions Available in sizes from 4 x 4 feet up to 16 x 16 feet in one-foot
Standard arms are designed to cover larger spaces and are available increments
in 7-, 10- and 12-foot versions. External brackets and adjustments allow Exclusive design — capture velocity zone is maximized and
air to pass through with less resistance, giving you stronger cfm (airflow) distributed over the work area
ZoneFlow ™ arms are designed to cover larger spaces and are available Hood airflow design reduces sound for better communication
in 10- and 12-foot versions. ZoneFlow arms extend the capture zone up Unique airflow offers spark abatement in the extraction rail, as well
to five feet versus up to 18 inches with conventional source capture arms. as the recommended Spark Cooler
External brackets and adjustments allow air to pass through with less Clear, UV-protected polycarbonate ceiling panels allow maximum
resistance giving you stronger cfm (airflow) light into the cell
Corner lift hooks are convenient for installing or hanging over a work
Arm mounting bracket and ducting kit includes a supporting bracket
area — hood can also be placed on an existing cell enclosure or
and collar for connecting an extraction arm to ductwork
supported with post assemblies
Model 6-Inch Diameter 8-Inch Diameter
Call us toll-free at 866-931-9730 or email us at
Telescoping Arm 301242 3–4.5 ft. arm 301237 3–4.5 ft. arm
Standard Arm 300953 7 ft. arm 300980 7 ft. arm FILTAIR@millerwelds.com for information and requests for
300954 10 ft. arm 300981 10 ft. arm
300955 12 ft. arm 300982 12 ft. arm quotes on custom-engineered solutions to fit your needs.
ZoneFlow Arm with Motor Control Box 951810 10 ft. arm 951758 10 ft. arm
951811 12 ft. arm 951759 12 ft. arm
Arm Mounting Bracket and Ducting Kit 300952 300771

Cleaner Air with FilTek XL Filters
®
The FilTek XL filter’s higher MERV rating means unrivaled filtering performance.

MERV Comparison
Particle Size Range Efficiency % 2
Applicable Weld Fume
MERV Rating Categories 1 0.3 to 1 μm 1 to 3 μm 3 to 10 μm Filters are rated on a MERV scale, which measures
10 Not Rated 50–65% 85% filter efficiency based on particle count. MERV
11 Not Rated 65–80% 85% ratings range from 1 to 16, with 16 being the best
12 Not Rated 80–90% 85% at filtering small particulate — such as those found
13 <75% 90% 90% in weld fumes.
14 75–85% 90% 90%
Filters in common air filtration systems often
15 85–95% 90% 90%
Miller® FilTek XL have MERV ratings from 7 to 11. FilTek XL filters
16 ≥95% ≥95% ≥95%
are rated at class-leading MERV 15 or 16 to
HEPA 3 ≥99.97% ≥99.97% ≥99.97%
capture from 85–95 percent or more of weld
Weld Fume Composition 4 75–95% ≤15% ≤10%
fume particulate.
1
American Society of Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) 52.2
2
National Air Filtration Association (NAFA) Guide
HEPA filters are depth loading and have high restrictions to air flow, reducing system performance versus FilTek XL filters.
3
Jenkins, Pierce, Edgar, Particle Size Distribution of GMAW and FCAW
4
