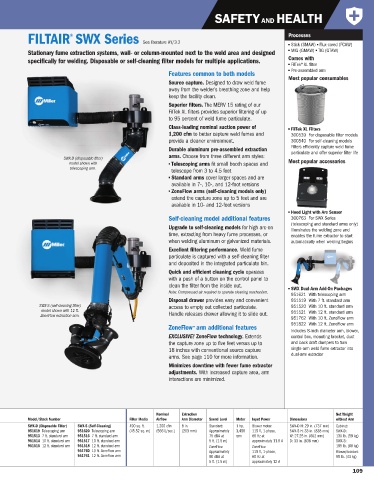

SAFETY AND HEALTH

® Processes
FILTAIR SWX Series See literature AY/3.2
Stick (SMAW) Flux-cored (FCAW)
Stationary fume extraction systems, wall- or column-mounted next to the weld area and designed MIG (GMAW) TIG (GTAW)
specifically for welding. Disposable or self-cleaning filter models for multiple applications. Comes with
FilTek® XL filter
Pre-assembled arm
Features common to both models
Most popular consumables
Source capture. Designed to draw weld fume
away from the welder’s breathing zone and help
keep the facility clean.
Superior filters. The MERV 15 rating of our
FilTek XL filters provides superior filtering of up
to 95 percent of weld fume particulate.
Class-leading nominal suction power of FilTek XL Filters
1,200 cfm to better capture weld fumes and 300539 For disposable filter models
provide a cleaner environment. 300540 For self-cleaning models
Filters efficiently capture weld fume
Durable aluminum pre-assembled extraction
particulate and offer superior filter life
arms. Choose from three different arm styles:
SWX-D (disposable filter)
model shown with Telescoping arms fit small booth spaces and Most popular accessories
telescoping arm.
telescope from 3 to 4.5 feet
Standard arms cover larger spaces and are
available in 7-, 10-, and 12-foot versions
ZoneFlow arms (self-cleaning models only)
extend the capture zone up to 5 feet and are
available in 10- and 12-foot versions
Hood Light with Arc Sensor
Self-cleaning model additional features 300763 For SWX Series
(telescoping and standard arms only)
Upgrade to self-cleaning models for high arc-on
Illuminates the welding zone and
time, extracting from heavy fume processes, or enables the fume extractor to start
when welding aluminum or galvanized materials. automatically when welding begins
Excellent filtering performance. Weld fume
particulate is captured with a self-cleaning filter
and deposited in the integrated particulate bin.
Quick and efficient cleaning cycle operates
with a push of a button on the control panel to
clean the filter from the inside out.
SWX Dual-Arm Add-On Packages
Note: Compressed air required to operate cleaning mechanism.
951621 With telescoping arm
Disposal drawer provides easy and convenient 951519 With 7 ft. standard arm
SWX-S (self-cleaning filter) access to empty out collected particulate. 951520 With 10 ft. standard arm
model shown with 12 ft. 951521 With 12 ft. standard arm
ZoneFlow extraction arm. Handle releases drawer allowing it to slide out.
951762 With 10 ft. ZoneFlow arm
951822 With 12 ft. ZoneFlow arm
ZoneFlow arm additional features
™
Includes 8-inch diameter arm, blower,
EXCLUSIVE! ZoneFlow technology. Extends control box, mounting bracket, duct
the capture zone up to five feet versus up to and back draft dampers to turn
18 inches with conventional source capture single-arm weld fume extractor into
dual-arm extractor
arms. See page 110 for more information.
Minimizes downtime with fewer fume extractor
adjustments. With increased capture area, arm
interactions are minimized.

Nominal Extraction Net Weight
Model/Stock Number Filter Media Airflow Arm Diameter Sound Level Motor Input Power Dimensions without Arm
SWX-D (Disposable Filter) SWX-S (Self-Cleaning) 490 sq. ft. 1,200 cfm 8 in. Standard: 1 hp, Blower motor: SWX-D H: 29 in. (737 mm) Cabinet:
951619 Telescoping arm 951620 Telescoping arm (45.52 sq. m) (566 L/sec.) (203 mm) Approximately 3,450 115 V, 1-phase, SWX-S H: 33 in. (838 mm) SWX-D:
951513 7 ft. standard arm 951516 7 ft. standard arm 75 dBA at rpm 60 Hz at W: 27.25 in. (692 mm) 130 lb. (59 kg)
951514 10 ft. standard arm 951517 10 ft. standard arm 5 ft. (1.5 m) approximately 11.9 A D: 33 in. (838 mm) SWX-S:
951515 12 ft. standard arm 951518 12 ft. standard arm ZoneFlow: ZoneFlow: 195 lb. (88 kg)
951760 10 ft. ZoneFlow arm Approximately 115 V, 1-phase, Blower/bracket:
951761 12 ft. ZoneFlow arm 80 dBA at 60 Hz at 95 lb. (43 kg)
5 ft. (1.5 m) approximately 12 A
109
