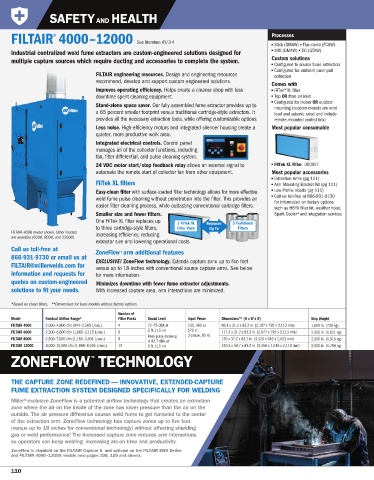

SAFETY AND HEALTH

® Processes
FILTAIR 4000–12000 See literature AY/3.4
Stick (SMAW) Flux-cored (FCAW)
Industrial centralized weld fume extractors are custom-engineered solutions designed for MIG (GMAW) TIG (GTAW)
multiple capture sources which require ducting and accessories to complete the system. Custom solutions
Configured to source fume extraction
Configured for ambient push-pull
FILTAIR engineering resources. Design and engineering resources collection
recommend, develop and support custom-engineered solutions.
Comes with
Improves operating efficiency. Helps create a cleaner shop with less FilTek® XL filter
downtime spent cleaning equipment. Top OR front air inlet
Configured for indoor OR outdoor
Stand-alone space saver. Our fully assembled fume extractor provides up to
mounting (outdoor models are wind
a 65 percent smaller footprint versus traditional cartridge-style extractors. It load and seismic rated and include
provides all the necessary extraction tools, while offering customizable options. remote-mounted control box)
Less noise. High-efficiency motors and integrated silencer housing create a Most popular consumable
quieter, more productive work area.
Integrated electrical controls. Control panel
manages all of the collector functions, including
fan, filter differential, and pulse cleaning system.
24 VDC motor start/stop feedback relay allows an external signal to FilTek XL Filter 300927
automate the remote start of collector fan from other equipment. Most popular accessories
Extraction Arms (pg 111)
FilTek XL filters Arm Mounting Bracket Kit (pg 111)
Easy-clean filter with surface-loaded filter technology allows for more effective Low Profile Hoods (pg 111)
Call us toll-free at 866-931-9730
weld fume pulse cleaning without penetration into the filter. This provides an
for information on factory options
easier filter cleaning process, while outlasting conventional cartridge filters.
such as HEPA filter kit, weather hood,
Smaller size and fewer filters. Spark Cooler® and integration services
One FilTek XL filter replaces up
1 FilTek XL Replaces 3 Traditional
to three cartridge-style filters, Filter Pack Up To Filters
FILTAIR 4000 model shown. Other models increasing efficiency, reducing
are available (6000, 8000, and 12000).
extractor size and lowering operational costs.
Call us toll-free at
ZoneFlow arm additional features
™
866-931-9730 or email us at
EXCLUSIVE! ZoneFlow technology. Extends capture zone up to five feet
FILTAIR@millerwelds.com for
versus up to 18 inches with conventional source capture arms. See below
information and requests for for more information.
quotes on custom-engineered Minimizes downtime with fewer fume extractor adjustments.
solutions to fit your needs. With increased capture area, arm interactions are minimized.
*Based on clean filters. **Dimensions for base models without factory options.
Number of
Model Nominal Airflow Range* Filter Packs Sound Level Input Power Dimensions** (H x W x D) Ship Weight
FILTAIR 4000 2,000–4,800 cfm (944–2,265 L/sec.) 4 72–75 dBA at 230, 460 or 86.1 x 31.2 x 83.2 in. (2,187 x 792 x 2,113 mm) 1,600 lb. (726 kg)
5 ft. (1.5 m) 575 V,
FILTAIR 6000 2,300–6,600 cfm (1,085–3,115 L/sec.) 6 117.2 x 31.2 x 83.2 in. (2,977 x 792 x 2,113 mm) 2,250 lb. (1,021 kg)
Peak pulse cleaning 3-phase, 60 Hz
FILTAIR 8000 2,500–7,000 cfm (1,180–3,304 L/sec.) 8 135 x 37.2 x 83.2 in. (3,429 x 945 x 2,113 mm) 2,900 lb. (1,315 kg)
is 92.7 dBA at
FILTAIR 12000 4,000–10,500 cfm (1,888–4,955 L/sec.) 12 5 ft. (1.5 m) 120.3 x 59.7 x 83.2 in. (3,056 x 1,516 x 2,113 mm) 3,900 lb. (1,769 kg)
™
ZONEFLOW TECHNOLOGY

THE CAPTURE ZONE REDEFINED — INNOVATIVE, EXTENDED-CAPTURE
FUME EXTRACTION SYSTEM DESIGNED SPECIFICALLY FOR WELDING
Miller®-exclusive ZoneFlow is a patented airflow technology that creates an extraction
zone where the air on the inside of the zone has lower pressure than the air on the
outside. The air pressure difference causes weld fume to get funneled to the center
of the extraction arm. ZoneFlow technology has capture zones up to five feet
(versus up to 18 inches for conventional technology) without affecting shielding
gas or weld performance! The increased capture zone reduces arm interactions
so operators can keep welding, increasing arc-on time and productivity.
ZoneFlow is standard on the FILTAIR Capture 5, and optional on the FILTAIR SWX Series
and FILTAIR 4000–12000 models (see pages 108, 109 and above).
