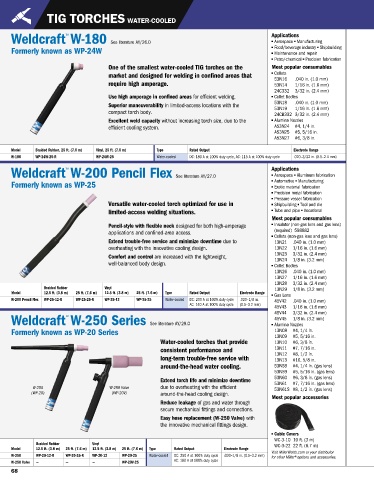

TIG TORCHES WATER-COOLED

™ Applications
Weldcraft W-180 See literature AY/26.0 Aerospace Manufacturing
Food/beverage industry Shipbuilding
Formerly known as WP-24W Maintenance and repair
Petro/chemical Precision fabrication
One of the smallest water-cooled TIG torches on the Most popular consumables
Collets
market and designed for welding in confined areas that
53N16 .040 in. (1.0 mm)
require high amperage. 53N14 1/16 in. (1.6 mm)
24C332 3/32 in. (2.4 mm)
Use high amperage in confined areas for efficient welding. Collet Bodies
53N18 .040 in. (1.0 mm)
Superior maneuverability in limited-access locations with the
53N19 1/16 in. (1.6 mm)
compact torch body.
24CB332 3/32 in. (2.4 mm)
Excellent weld capacity without increasing torch size, due to the Alumina Nozzles
efficient cooling system. A53N24 #4, 1/4 in.
A53N25 #5, 5/16 in.
A53N27 #6, 3/8 in.
Model Braided Rubber, 25 ft. (7.6 m) Vinyl, 25 ft. (7.6 m) Type Rated Output Electrode Range
W-180 WP-24W-25-R WP-24W-25 Water-cooled DC: 180 A at 100% duty cycle, AC: 115 A at 100% duty cycle .020–3/32 in. (0.5–2.4 mm)
™ Applications
Weldcraft W-200 Pencil Flex See literature AY/27.0 Aerospace Aluminum fabrication
Automotive Manufacturing
Formerly known as WP-25 Exotic material fabrication
Precision metal fabrication
Pressure vessel fabrication
Versatile water-cooled torch optimized for use in Shipbuilding Tool and die
limited-access welding situations. Tube and pipe Vocational
Most popular consumables
Pencil-style with flexible neck designed for both high-amperage Insulator (non-gas lens and gas lens)
(required) 598882
applications and confined-area access.
Collets (non-gas lens and gas lens)
Extend trouble-free service and minimize downtime due to 13N21 .040 in. (1.0 mm)
overheating with the innovative cooling design. 13N22 1/16 in. (1.6 mm)
13N23 3/32 in. (2.4 mm)
Comfort and control are increased with the lightweight,
13N24 1/8 in. (3.2 mm)
well-balanced body design. Collet Bodies
13N26 .040 in. (1.0 mm)
13N27 1/16 in. (1.6 mm)
13N28 3/32 in. (2.4 mm)
Braided Rubber Vinyl 13N29 1/8 in. (3.2 mm)
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type Rated Output Electrode Range
Gas Lens
W-200 Pencil Flex WP-25-12-R WP-25-25-R WP-25-12 WP-25-25 Water-cooled DC: 200 A at 100% duty cycle .020–1/8 in. 45V42 .040 in. (1.0 mm)
AC: 140 A at 100% duty cycle (0.5–3.2 mm)
45V43 1/16 in. (1.6 mm)
45V44 3/32 in. (2.4 mm)
™
45V45 1/8 in. (3.2 mm)
Weldcraft W-250 Series See literature AY/29.0 Alumina Nozzles
Formerly known as WP-20 Series 13N08 #4, 1/4 in.
13N09 #5, 5/16 in.
Water-cooled torches that provide 13N10 #6, 3/8 in.
consistent performance and 13N11 #7, 7/16 in.
13N12 #8, 1/2 in.
long-term trouble-free service with 13N13 #10, 5/8 in.
around-the-head water cooling. 53N58 #4, 1/4 in. (gas lens)
53N59 #5, 5/16 in. (gas lens)
53N60 #6, 3/8 in. (gas lens)
Extend torch life and minimize downtime
53N61 #7, 7/16 in. (gas lens)
W-250 W-250 Valve due to overheating with the efficient
53N61S #8, 1/2 in. (gas lens)
(WP-20) (WP-20V) around-the-head cooling design.
Most popular accessories
Reduce leakage of gas and water through
secure mechanical fittings and connections.
Easy hose replacement (W-250 Valve) with
the innovative mechanical fittings design.
Cable Covers
WC-3-10 10 ft. (3 m)
Braided Rubber Vinyl WC-3-22 22 ft. (6.7 m)
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type Rated Output Electrode Range
Visit MillerWelds.com or your distributor
W-250 WP-20-12-R WP-20-25-R WP-20-12 WP-20-25 Water-cooled DC: 250 A at 100% duty cycle .020–1/8 in. (0.5–3.2 mm) for other Miller®options and accessories.
AC: 180 A at 100% duty cycle
W-250 Valve — — — WP-20V-25
