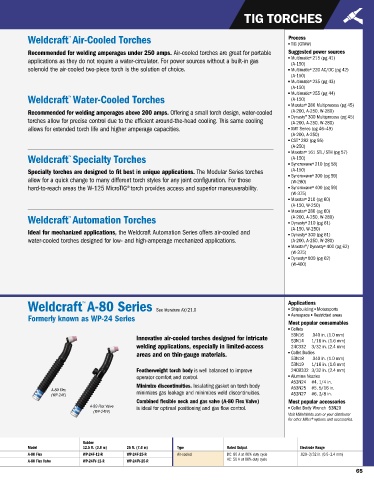

TIG TORCHES

™
Weldcraft Air-Cooled Torches Process
TIG (GTAW)
Recommended for welding amperages under 250 amps. Air-cooled torches are great for portable Suggested power sources
Multimatic® 215 (pg 41)
applications as they do not require a water-circulator. For power sources without a built-in gas
(A-150)
solenoid the air-cooled two-piece torch is the solution of choice. Multimatic® 220 AC/DC (pg 42)
(A-150)
Multimatic® 235 (pg 43)
(A-150)
Multimatic® 255 (pg 44)
™
Weldcraft Water-Cooled Torches (A-150)
Maxstar® 280 Multiprocess (pg 45)
Recommended for welding amperages above 200 amps. Offering a small torch design, water-cooled (A-200, A-250, W-280)
Dynasty® 300 Multiprocess (pg 45)
torches allow for precise control due to the efficient around-the-head cooling. This same cooling (A-200, A-250, W-280)
allows for extended torch life and higher amperage capacities. XMT Series (pg 46–49)
(A-200, A-250)
CST ™ 282 (pg 55)
(A-250)
Maxstar® 161 STL/STH (pg 57)
™
Weldcraft Specialty Torches (A-150)
Syncrowave® 210 (pg 58)
Specialty torches are designed to fit best in unique applications. The Modular Series torches (A-150)
Syncrowave® 300 (pg 59)
allow for a quick change to many different torch styles for any joint configuration. For those (W-280)
hard-to-reach areas the W-125 MicroTIG ® torch provides access and superior maneuverability. Syncrowave® 400 (pg 59)
(W-375)
Maxstar® 210 (pg 60)
(A-150, W-250)
Maxstar® 280 (pg 60)
Weldcraft Automation Torches (A-200, A-250, W-280)
™
Dynasty® 210 (pg 61)
(A-150, W-250)
Ideal for mechanized applications, the Weldcraft Automation Series offers air-cooled and
Dynasty® 300 (pg 61)
water -cooled torches designed for low- and high-amperage mechanized applications. (A-200, A-250, W-280)
Maxstar®/Dynasty® 400 (pg 62)
(W-375)
Dynasty® 800 (pg 62)
(W-400)

™ Applications
Weldcraft A-80 Series See literature AY/21.0 Shipbuilding Motorsports
Aerospace Restricted areas
Formerly known as WP-24 Series
Most popular consumables
Collets
53N16 .040 in. (1.0 mm)
Innovative air-cooled torches designed for intricate
53N14 1/16 in. (1.6 mm)
welding applications, especially in limited-access 24C332 3/32 in. (2.4 mm)
areas and on thin-gauge materials. Collet Bodies
53N18 .040 in. (1.0 mm)
53N19 1/16 in. (1.6 mm)
Featherweight torch body is well balanced to improve 24CB332 3/32 in. (2.4 mm)
operator comfort and control. Alumina Nozzles
A53N24 #4, 1/4 in.
Minimize discontinuities. Insulating gasket on torch body
A-80 Flex A53N25 #5, 5/16 in.
(WP-24F) minimizes gas leakage and minimizes weld discontinuities. A53N27 #6, 3/8 in.
Combined flexible neck and gas valve (A-80 Flex Valve) Most popular accessories
A-80 Flex Valve is ideal for optimal positioning and gas flow control. Collet Body Wrench 53N20
(WP-24FV)
Visit MillerWelds.com or your distributor
for other Miller®options and accessories.

Rubber
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type Rated Output Electrode Range
A-80 Flex WP-24F-12-R WP-24F-25-R Air-cooled DC: 80 A at 60% duty cycle .020–3/32 in. (0.5–2.4 mm)
AC: 50 A at 60% duty cycle
A-80 Flex Valve WP-24FV-12-R WP-24FV-25-R
65
