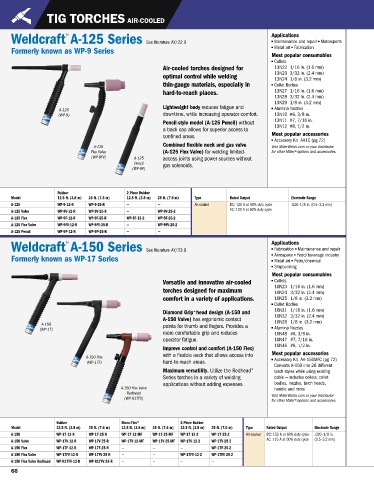

TIG TORCHES AIR-COOLED

™ Applications
Weldcraft A-125 Series See literature AY/22.0 Maintenance and repair Motorsports
Metal art Fabrication
Formerly known as WP-9 Series
Most popular consumables
Collets
Air-cooled torches designed for 13N22 1/16 in. (1.6 mm)
13N23 3/32 in. (2.4 mm)
optimal control while welding
13N24 1/8 in. (3.2 mm)
thin-gauge materials, especially in Collet Bodies
hard-to-reach places. 13N27 1/16 in. (1.6 mm)
13N28 3/32 in. (2.4 mm)
13N29 1/8 in. (3.2 mm)
Lightweight body reduces fatigue and Alumina Nozzles
A-125
(WP-9) downtime, while increasing operator comfort. 13N10 #6, 3/8 in.
13N11 #7, 7/16 in.
Pencil-style model (A-125 Pencil) without 13N12 #8, 1/2 in.
a back cap allows for superior access to
confined areas. Most popular accessories
Accessory Kit AK1C (pg 72)
Combined flexible neck and gas valve
A-125 Visit MillerWelds.com or your distributor
Flex Valve (A-125 Flex Valve) for welding limited- for other Miller®options and accessories.
(WP-9FV) A-125 access joints using power sources without
Pencil
(WP-9P) gas solenoids.

Rubber 2-Piece Rubber
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type Rated Output Electrode Range
A-125 WP-9-12-R WP-9-25-R — — Air-cooled DC: 125 A at 60% duty cycle .020–1/8 in. (0.5–3.2 mm)
AC: 100 A at 60% duty cycle
A-125 Valve WP-9V-12-R WP-9V-25-R — WP-9V-25-2
A-125 Flex WP-9F-12-R WP-9F-25-R WP-9F-12-2 WP-9F-25-2
A-125 Flex Valve WP-9FV-12-R WP-9FV-25-R — WP-9FV-25-2
A-125 Pencil WP-9P-12-R WP-9P-25-R — —
™ Applications
Weldcraft A-150 Series See literature AY/23.0 Fabrication Maintenance and repair
Aerospace Food/beverage industry
Formerly known as WP-17 Series Metal art Petro/chemical
Shipbuilding
Most popular consumables
Versatile and innovative air-cooled Collets
10N23 1/16 in. (1.6 mm)
torches designed for maximum 10N24 3/32 in. (2.4 mm)
comfort in a variety of applications. 10N25 1/8 in. (3.2 mm)
Collet Bodies
10N31 1/16 in. (1.6 mm)
Diamond Grip head design (A-150 and
™
10N32 3/32 in. (2.4 mm)
A-150 Valve) has ergonomic contact 10N28 1/8 in. (3.2 mm)
A-150 points for thumb and fingers. Provides a
(WP-17) Alumina Nozzles
more comfortable grip and reduces 10N48 #6, 3/8 in.
operator fatigue. 10N47 #7, 7/16 in.
10N46 #8, 1/2 in.
Improve control and comfort (A-150 Flex)
with a flexible neck that allows access into Most popular accessories
A-150 Flex Accessory Kit AK-150MFC (pg 72)
(WP-17F) hard-to-reach areas.
Converts A-150 into 28 different
Maximum versatility. Utilize the Redhead ™ torch styles while using existing
Series torches in a variety of welding cable — includes collets, collet
applications without adding expenses. bodies, nozzles, torch heads,
A-150 Flex Valve handle and more
Redhead
Visit MillerWelds.com or your distributor
(WP-R17FV)
for other Miller®options and accessories.
Rubber Mono-Flex ™ 2-Piece Rubber
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) 12.5 ft. (3.8 m) 25 ft. (7.6 m) 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type Rated Output Electrode Range
A-150 WP-17-12-R WP-17-25-R WP-17-12-MF WP-17-25-MF WP-17-12-2 WP-17-25-2 Air-cooled DC: 150 A at 60% duty cycle .020–1/8 in.
AC: 115 A at 60% duty cycle (0.5–3.2 mm)
A-150 Valve WP-17V-12-R WP-17V-25-R WP-17V-12-MF WP-17V-25-MF WP-17V-12-2 WP-17V-25-2
A-150 Flex WP-17F-12-R WP-17F-25-R — — — WP-17F-25-2
A-150 Flex Valve WP-17FV-12-R WP-17FV-25-R — — WP-17FV-12-2 WP-17FV-25-2
A-150 Flex Valve Redhead WP-R17FV-12-R WP-R17FV-25-R — — — —
