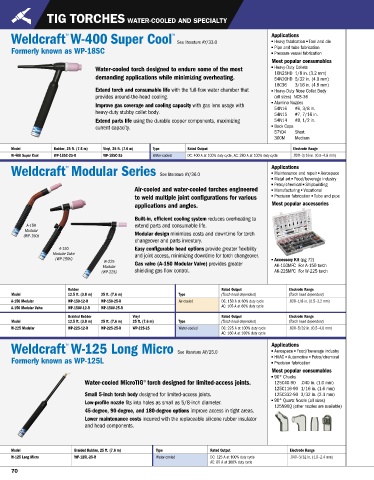

TIG TORCHES WATER-COOLED AND SPECIALTY

™
Weldcraft W-400 Super Cool ™ See literature AY/33.0 Applications
Heavy fabrication Tool and die
Pipe and tube fabrication
Formerly known as WP-18SC Pressure vessel fabrication
Most popular consumables
Water-cooled torch designed to endure some of the most Heavy-Duty Collets
10N25HD 1/8 in. (3.2 mm)
demanding applications while minimizing overheating. 54N20HD 5/32 in. (4.0 mm)
18C36 3/16 in. (4.8 mm)
Extend torch and consumable life with the full-flow water chamber that Heavy-Duty Nose Collet Body
provides around-the-head cooling. (all sizes) NCB-36
Alumina Nozzles
Improve gas coverage and cooling capacity with gas lens usage with
54N16 #6, 3/8 in.
heavy-duty stubby collet body.
54N15 #7, 7/16 in.
Extend parts life using the durable copper components, maximizing 54N14 #8, 1/2 in.
current capacity. Back Caps
57Y04 Short
300M Medium
Model Rubber, 25 ft. (7.6 m) Vinyl, 25 ft. (7.6 m) Type Rated Output Electrode Range
W-400 Super Cool WP-18SC-25-R WP-18SC-25 Water-cooled DC: 400 A at 100% duty cycle, AC: 280 A at 100% duty cycle .020–3/16 in. (0.5–4.8 mm)
™ Applications
Weldcraft Modular Series See literature AY/36.0 Maintenance and repair Aerospace
Metal art Food/beverage industry
Petro/chemical Shipbuilding
Air-cooled and water-cooled torches engineered Manufacturing Vocational
to weld multiple joint configurations for various Precision fabrication Tube and pipe
applications and angles. Most popular accessories
Built-in, efficient cooling system reduces overheating to
A-150 extend parts and consumable life.
Modular
(WP-150) Modular design minimizes costs and downtime for torch
changeover and parts inventory.
A-150 Easy configurable head options provide greater flexibility
Modular Valve and joint access, minimizing downtime for torch changeover.
(WP-150V) Accessory Kit (pg 72)
W-225
Modular Gas valve (A-150 Modular Valve) provides greater AK-150MFC For A-150 torch
(WP-225) shielding gas flow control. AK-225MFC For W-225 torch

Rubber Rated Output Electrode Range
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) Type (Torch head dependent) (Torch head dependent)
A-150 Modular WP-150-12-R WP-150-25-R Air-cooled DC: 150 A at 60% duty cycle .020–1/8 in. (0.5–3.2 mm)
AC: 105 A at 60% duty cycle
A-150 Modular Valve WP-150V-12-R WP-150V-25-R
Braided Rubber Vinyl Rated Output Electrode Range
Model 12.5 ft. (3.8 m) 25 ft. (7.6 m) 25 ft. (7.6 m) Type (Torch head dependent) (Torch head dependent)
W-225 Modular WP-225-12-R WP-225-25-R WP-225-25 Water-cooled DC: 225 A at 100% duty cycle .020–5/32 in. (0.5–4.0 mm)
AC: 160 A at 100% duty cycle
™ Applications
Weldcraft W-125 Long Micro See literature AY/25.0 Aerospace Food/beverage industry
HVAC Automotive Petro/chemical
Formerly known as WP-125L Precision fabrication
Most popular consumables
90° Chucks
Water-cooled MicroTIG ® torch designed for limited-access joints. 125C40-90 .040 in. (1.0 mm)
125C116-90 1/16 in. (1.6 mm)
Small 5-inch torch body designed for limited-access joints. 125C332-90 3/32 in. (2.4 mm)
90° Quartz Nozzle (all sizes)
Low-profile nozzle fits into holes as small as 5/8-inch diameter.
125N90Q (other nozzles are available)
45-degree, 90-degree, and 180-degree options improve access in tight areas.
Lower maintenance costs incurred with the replaceable silicone rubber insulator
and head components.

Model Braided Rubber, 25 ft. (7.6 m) Type Rated Output Electrode Range
W-125 Long Micro WP-125L-25-R Water-cooled DC: 125 A at 100% duty cycle .040–3/32 in. (1.0–2.4 mm)
AC: 80 A at 100% duty cycle
