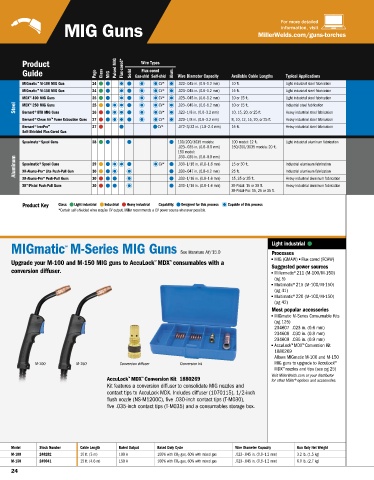

Page 24 - millerwelds catalog_2022

A FLE24 Cat P 24 MIG Guns Intro.qxp_MIG Guns Intro 1/12/24 12:06 PM Page 1

For more detailed
MIG Guns MillerWelds.com/guns-torches
information, visit

Product Pulsed MIG Flux-cored* Wire Types
Flux-cored
Guide Page Class MIG Solid Gas-shld Self-shld Alum. Wire Diameter Capacity Available Cable Lengths Typical Applications
MIGmatic ™ M-100 MIG Gun 24 CV* .023–.045 in. (0.6–1.2 mm) 10 ft. Light industrial steel fabrication
MIGmatic ™ M-150 MIG Gun 24 CV* .023–.045 in. (0.6–1.2 mm) 15 ft. Light industrial steel fabrication
MDX ™ -100 MIG Guns 25 CV* .023–.045 in. (0.6–1.2 mm) 10 or 15 ft. Light industrial steel fabrication
Steel MDX ™ -250 MIG Guns 25 CV* .023–.045 in. (0.6–1.2 mm) 10 or 15 ft. Industrial steel fabrication

.023–1/8 in. (0.6–3.2 mm) 10, 15, 20, or 25 ft. Heavy industrial steel fabrication
Bernard® BTB MIG Guns 26
CV*
Bernard® Clean Air ™ Fume Extraction Guns 27 CV* .023–1/8 in. (0.6–3.2 mm) 8, 10, 12, 15, 20, or 25 ft. Heavy industrial steel fabrication
Bernard® IronPro ™ 27 .072–3/32 in. (1.8–2.4 mm) 15 ft. Heavy industrial steel fabrication
CV*
Self-Shielded Flux-Cored Gun
Spoolmate ™ Spool Guns 28 100/200/3035 models: 100 model: 12 ft. Light industrial aluminum fabrication
.023–.035 in. (0.6–0.9 mm) 150/200/3035 models: 20 ft.
150 model:
.030–.035 in. (0.8–0.9 mm)
Aluminum Spoolmatic® Spool Guns 29 .030–1/16 in. (0.8–1.6 mm) 15 or 30 ft. Industrial aluminum fabrication
CV*

.030–.047 in. (0.8–1.2 mm) 25 ft. Industrial aluminum fabrication
XR-Aluma-Pro ™ Lite Push-Pull Gun 30
XR-Aluma-Pro ™ Push-Pull Guns 30 .030–1/16 in. (0.8–1.6 mm) 15, 25 or 35 ft. Heavy industrial aluminum fabrication
XR ™ -Pistol Push-Pull Guns 30 .030–1/16 in. (0.8–1.6 mm) XR-Pistol: 15 or 30 ft. Heavy industrial aluminum fabrication
XR-Pistol-Pro: 15, 25 or 35 ft.
Product Key Class: Light industrial Industrial Heavy industrial Capability: Designed for this process Capable of this process
*Certain self-shielded wires require CV output. Miller recommends a CV power source whenever possible.

Light industrial
™
MIGmatic M-Series MIG Guns See literature AY/15.0 Processes
MIG (GMAW) Flux-cored (FCAW)
™
Upgrade your M-100 and M-150 MIG guns to AccuLock MDX consumables with a
™
Suggested power sources
conversion diffuser. Millermatic® 211 (M-100/M-150)
(pg 5)
Multimatic® 215 (M-100/M-150)
(pg 41)
Multimatic® 220 (M-100/M-150)
(pg 42)
Most popular accessories
MIGmatic M-Series Consumable Kits
(pg 125)
234607 .023 in. (0.6 mm)
234608 .030 in. (0.8 mm)
234609 .035 in. (0.9 mm)
™
AccuLock ™ MDX Conversion Kit
1880269
Allows MIGmatic M-100 and M-150
M-100 M-150 Conversion diffuser Conversion kit MIG guns to upgrade to AccuLock ™
MDX ™ nozzles and tips (see pg 25)
Visit MillerWelds.com or your distributor
AccuLock MDX Conversion Kit 1880269 for other Miller®options and accessories.
™
™
Kit features a conversion diffuser to consolidate MIG nozzles and
contact tips to AccuLock MDX. Includes diffuser (1070115), 1/2-inch
flush nozzle (NS-M1200C), five .030-inch contact tips (T-M030),
five .035-inch contact tips (T-M035) and a consumables storage box.

Model Stock Number Cable Length Rated Output Rated Duty Cycle Wire Diameter Capacity Gun Only Net Weight
M-100 248282 10 ft. (3 m) 100 A 100% with CO 2 gas, 60% with mixed gas .023–.045 in. (0.6–1.2 mm) 3.2 lb. (1.5 kg)
M-150 249041 15 ft. (4.6 m) 150 A 100% with CO 2 gas, 60% with mixed gas .023–.045 in. (0.6–1.2 mm) 6.0 lb. (2.7 kg)
24
