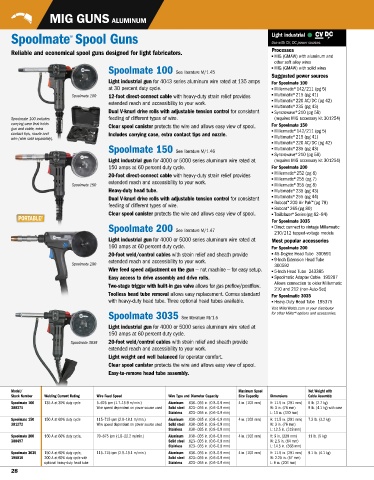

Page 28 - millerwelds catalog_2022

A FLE24 Cat P 28 MIG Guns.qxp_MIG Guns 1/12/24 12:07 PM Page 1

MIG GUNS ALUMINUM

Spoolmate Spool Guns Light industrial
™
Use with CV, DC power sources.
Processes
Reliable and economical spool guns designed for light fabricators.
MIG (GMAW) with aluminum and
other soft alloy wires
MIG (GMAW) with solid wires
Spoolmate 100 See literature M/1.45
Suggested power sources
Light industrial gun for 4043 series aluminum wire rated at 135 amps For Spoolmate 100
at 30 percent duty cycle. Millermatic® 142/211 (pg 5)
Spoolmate 100 12-foot direct-connect cable with heavy-duty strain relief provides Multimatic® 215 (pg 41)
Multimatic® 220 AC/DC (pg 42)
extended reach and accessibility to your work.
Multimatic® 235 (pg 43)
Dual V-knurl drive rolls with adjustable tension control for consistent Syncrowave® 210 (pg 58)
Spoolmate 100 includes feeding of different types of wire. (requires MIG accessory kit 301254)
carrying case that holds For Spoolmate 150
gun and cable, extra Clear spool canister protects the wire and allows easy view of spool. Millermatic® 142/211 (pg 5)
contact tips, nozzle and Includes carrying case, extra contact tips and nozzle.
wire (wire sold separately). Multimatic® 215 (pg 41)
Multimatic® 220 AC/DC (pg 42)
Multimatic® 235 (pg 43)
Spoolmate 150 See literature M/1.46
Syncrowave® 210 (pg 58)
Light industrial gun for 4000 or 5000 series aluminum wire rated at (requires MIG accessory kit 301254)
150 amps at 60 percent duty cycle. For Spoolmate 200
20-foot direct-connect cable with heavy-duty strain relief provides Millermatic® 252 (pg 6)
Millermatic® 255 (pg 7)
extended reach and accessibility to your work.
Spoolmate 150 Millermatic® 355 (pg 8)
Heavy-duty head tube. Multimatic® 235 (pg 43)
Dual V-knurl drive rolls with adjustable tension control for consistent Multimatic® 255 (pg 44)
™
Bobcat ™ 200 Air Pak (pg 79)
feeding of different types of wire.
Bobcat 265 (pg 80)
™
Clear spool canister protects the wire and allows easy view of spool. Trailblazer® Series (pg 82–84)
PORTABLE!
For Spoolmate 3035
Direct connect to vintage Millermatic
Spoolmate 200 See literature M/1.47
210/212 tapped-voltage models
Light industrial gun for 4000 or 5000 series aluminum wire rated at Most popular accessories
160 amps at 60 percent duty cycle. For Spoolmate 200
20-foot weld/control cables with strain relief and sheath provide 45-Degree Head Tube 300591
extended reach and accessibility to your work. 9-Inch Extension Head Tube
Spoolmate 200 300592
Wire feed speed adjustment on the gun — not machine — for easy setup. 5-Inch Head Tube 243385
Easy access to drive assembly and drive rolls. Spoolmatic Adapter Cable 195287
Allows connection to older Millermatic
Two-stage trigger with built-in gas valve allows for gas preflow/postflow.
210 and 212 (non-Auto-Set)
Toolless head tube removal allows easy replacement. Comes standard For Spoolmatic 3035
with heavy-duty head tube. Three optional head tubes available. Heavy-Duty Head Tube 195375
Visit MillerWelds.com or your distributor
for other Miller®options and accessories.
Spoolmate 3035 See literature M/1.5
Light industrial gun for 4000 or 5000 series aluminum wire rated at
150 amps at 60 percent duty cycle.
Spoolmate 3035 20-foot weld/control cables with strain relief and sheath provide
extended reach and accessibility to your work.
Light weight and well balanced for operator comfort.
Clear spool canister protects the wire and allows easy view of spool.
Easy-to-remove head tube assembly.

Model/ Maximum Spool Net Weight with
Stock Number Welding Current Rating Wire Feed Speed Wire Type and Diameter Capacity Size Capacity Dimensions Cable Assembly
Spoolmate 100 135 A at 30% duty cycle 5–625 ipm (1.7–15.9 m/min.) Aluminum .030–.035 in. (0.8–0.9 mm) 4 in. (102 mm) H: 11.5 in. (291 mm) 6 lb. (2.7 kg)
300371 Wire speed dependent on power source used Solid steel .023–.035 in. (0.6–0.9 mm) W: 3 in. (76 mm) 9 lb. (4.1 kg) with case
Stainless .023–.035 in. (0.6–0.9 mm) L: 13 in. (330 mm)
Spoolmate 150 150 A at 60% duty cycle 115–715 ipm (2.9–18.1 m/min.) Aluminum .030–.035 in. (0.8–0.9 mm) 4 in. (102 mm) H: 11.5 in. (291 mm) 7.3 lb. (3.2 kg)
301272 Wire speed dependent on power source used Solid steel .030–.035 in. (0.8–0.9 mm) W: 3 in. (76 mm)
Stainless .030–.035 in. (0.8–0.9 mm) L: 12.5 in. (318 mm)
Spoolmate 200 160 A at 60% duty cycle, 70–875 ipm (1.8–22.2 m/min.) Aluminum .030–.035 in. (0.8–0.9 mm) 4 in. (102 mm) H: 9 in. (229 mm) 11 lb. (5 kg)
300497 Solid steel .023–.035 in. (0.6–0.9 mm) W: 2.5 in. (64 mm)
Stainless .023–.035 in. (0.6–0.9 mm) L: 14.5 in. (368 mm)
Spoolmate 3035 150 A at 60% duty cycle, 115–715 ipm (2.9–18.1 m/min.) Aluminum .030–.035 in. (0.8–0.9 mm) 4 in. (102 mm) H: 11.5 in. (291 mm) 9.1 lb. (4.1 kg)
195016 200 A at 60% duty cycle with Solid steel .023–.035 in. (0.6–0.9 mm) W: 2.25 in. (57 mm)
optional heavy-duty head tube Stainless .023–.035 in. (0.6–0.9 mm) L: 8 in. (203 mm)
