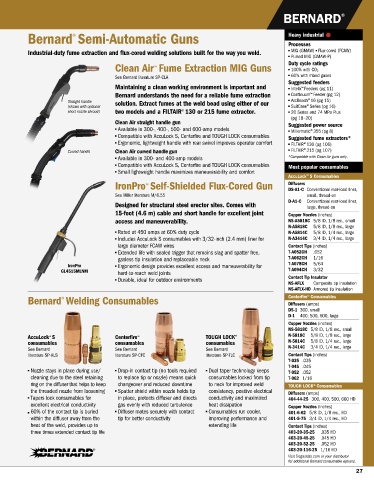

Page 27 - millerwelds catalog_2022

A FLE24 Cat P 27 Bernard.qxp_MIG Guns 1/12/24 12:07 PM Page 1

BERNARD ®

®
Bernard Semi-Automatic Guns Heavy industrial
Processes
Industrial-duty fume extraction and flux-cored welding solutions built for the way you weld. MIG (GMAW) Flux-cored (FCAW)
Pulsed MIG (GMAW-P)
Duty cycle ratings
™
Clean Air Fume Extraction MIG Guns 100% with CO 2
60% with mixed gases
See Bernard literature SP-CLA
Suggested feeders
Maintaining a clean working environment is important and Intellx Feeders (pg 11)
™
Bernard understands the need for a reliable fume extraction Continuum ™ Feeder (pg 12)
Straight handle solution. Extract fumes at the weld bead using either of our ArcReach® 16 (pg 15)
(shown with optional SuitCase® Series (pg 16)
short nozzle shroud) two models and a FILTAIR ® 130 or 215 fume extractor. 20 Series and 74 MPa Plus
(pg 18–20)
Clean Air straight handle gun
Suggested power source
Available in 300-, 400-, 500- and 600-amp models
Millermatic® 355 (pg 8)
Compatible with AccuLock S, Centerfire and TOUGH LOCK consumables
Suggested fume extractors*
Ergonomic, lightweight handle with rear swivel improves operator comfort FILTAIR® 130 (pg 106)
Curved handle Clean Air curved handle gun FILTAIR® 215 (pg 107)
Available in 300- and 400-amp models *Compatible with Clean Air guns only.
Compatible with AccuLock S, Centerfire and TOUGH LOCK consumables Most popular consumables
Small lightweight handle maximizes maneuverability and comfort
AccuLock S Consumables
™
IronPro Self-Shielded Flux-Cored Gun Diffusers
™
DS-A1-C Conventional rear-load liner,
See Miller literature M/6.55 small, thread-on
D-A1-C Conventional rear-load liner,
Designed for structural steel erector sites. Comes with large, thread-on
15-foot (4.6 m) cable and short handle for excellent joint Copper Nozzles (inches)
access and maneuverability. NS-A5818C 5/8 ID, 1/8 rec., small
N-A5818C 5/8 ID, 1/8 rec., large
Rated at 450 amps at 60% duty cycle N-A5814C 5/8 ID, 1/4 rec., large
Includes AccuLock S consumables with 3/32-inch (2.4 mm) liner for N-A3414C 3/4 ID, 1/4 rec., large
large diameter FCAW wires Contact Tips (inches)
Extended life with sealed trigger that remains slag and spatter free, T-A052CH .052
gasless tip insulation and replaceable neck T-A062CH 1/16
IronPro Ergonomic design provides excellent access and maneuverability for T-A078CH 5/64
GL4515MLNM hard-to-reach weld joints T-A094CH 3/32
Contact Tip Insulator
Durable, ideal for outdoor environments
NS-AFLX Composite tip insulation
NS-AFLX-HD Armored tip insulation
Centerfire ™ Consumables
®
Bernard Welding Consumables Diffusers (amps)
DS-1 300, small
D-1 400, 500, 600, large
Copper Nozzles (inches)
NS-5818C 5/8 ID, 1/8 rec., small
AccuLock S Centerfire ™ TOUGH LOCK ® N-5818C 5/8 ID, 1/8 rec., large
™
consumables consumables consumables N-5814C 5/8 ID, 1/4 rec., large
N-3414C 3/4 ID, 1/4 rec., large
See Bernard See Bernard See Bernard
literature SP-ALS literature SP-CFC literature SP-TLC Contact Tips (inches)
T-035 .035
T-045 .045
Nozzle stays in place during use/ Drop-in contact tip (no tools required Dual taper technology keeps T-052 .052
cleaning due to the steel retaining to replace tip or nozzle) means quick consumables locked from tip T-062 1/16
ring on the diffuser that helps to keep changeover and reduced downtime to neck for improved weld TOUGH LOCK® Consumables
the threaded nozzle from loosening Spatter shield within nozzle holds tip consistency, positive electrical
Diffusers (amps)
Tapers lock consumables for in place, protects diffuser and directs conductivity and maxi mized 404-44-25 300, 400, 500, 600 HD
excellent electrical conductivity gas evenly with reduced turbulence heat dissipation
Copper Nozzles (inches)
60% of the contact tip is buried Diffuser mates securely with contact Consumables run cooler, 401-6-62 5/8 ID, 1/8 rec., HD
within the diffuser away from the tip for better conductivity improving performance and 401-5-75 3/4 ID, 1/4 rec., HD
heat of the weld, provides up to extending life Contact Tips (inches)
three times extended contact tip life 403-20-35-25 .035 HD
403-20-45-25 .045 HD
403-20-52-25 .052 HD
403-20-116-25 1/16 HD
Visit Tregaskiss.com or your distributor
for additional Bernardconsumable options.
