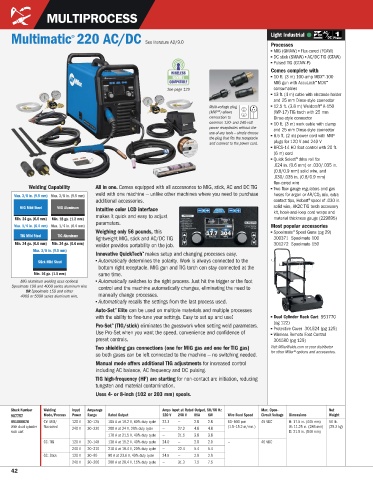

Page 42 - millerwelds catalog_2022

MULTIPROCESS

® Light Industrial
Multimatic 220 AC/DC See literature AD/9.0
Processes
MIG (GMAW) Flux-cored (FCAW)
DC stick (SMAW) AC/DC TIG (GTAW)
Pulsed TIG (GTAW-P)
Comes complete with
™
10 ft. (3 m) 100-amp MDX -100
MIG gun with AccuLock ™ MDX ™
See page 129 consumables
13 ft. (4 m) cable with electrode holder
and 25 mm Dinse-style connector
Multi-voltage plug 12.5 ft. (3.8 m) Weldcraft ™ A-150
(MVP ™ ) allows (WP-17) TIG torch with 25 mm
connection to Dinse-style connector
common 120- and 240-volt 10 ft. (3 m) work cable with clamp
power receptacles without the and 25 mm Dinse-style connector
use of any tools — simply choose
6.5 ft. (2 m) power cord with MVP
the plug that fits the receptacle
and connect to the power cord. plugs for 120 V and 240 V
RFCS-14 HD foot control with 20 ft.
(6 m) cord
Quick Select ™ drive roll for
.024 in. (0.6 mm) or .030/.035 in.
(0.8/0.9 mm) solid wire, and
.030/.035 in. (0.8/0.9 mm)
flux-cored wire
Welding Capability All in one. Comes equipped with all accessories to MIG, stick, AC and DC TIG Two flow gauge regulators and gas
weld with one machine — unlike other machines where you need to purchase hoses for argon or AR/CO 2 mix, extra
Max. 3/8 in. (9.5 mm) Max. 3/8 in. (9.5 mm)
additional accessories. contact tips, Hobart® spool of .030 in.
MIG Mild Steel MIG Aluminum solid wire, AK2C TIG torch accessory
Intuitive color LCD interface kit, hook-and-loop cord wraps and
makes it quick and easy to adjust
Min. 24 ga. (0.6 mm) Min. 18 ga. (1.2 mm) material thickness gauge (229895)
parameters.
Max. 1/4 in. (6.4 mm) Max. 1/4 in. (6.4 mm) Most popular accessories
Weighing only 56 pounds, this Spoolmate ™ Spool Guns (pg 29)
TIG Mild Steel TIG Aluminum
lightweight MIG, stick and AC/DC TIG 300371 Spoolmate 100
Min. 24 ga. (0.6 mm) Min. 24 ga. (0.6 mm) 301272 Spoolmate 150
welder provides portability on the job.
Max. 3/8 in. (9.5 mm)
™
Innovative QuickTech makes setup and changing processes easy.
Stick Mild Steel Automatically determines the polarity. Work is always connected to the
bottom right receptacle. MIG gun and TIG torch can stay connected at the
Min. 16 ga. (1.5 mm) same time.
MIG aluminum welding uses optional Automatically switches to the right process. Just hit the trigger or the foot
Spoolmate 100 and 4000 series aluminum wire control and the machine automatically changes, eliminating the need to
OR Spoolmate 150 and either
4000 or 5000 series aluminum wire. manually change processes.
Automatically recalls the settings from the last process used.
Auto-Set Elite can be used on multiple materials and multiple processes
™
with the ability to fine-tune your settings. Easy to set up and use! Dual Cylinder Rack Cart 951770
(pg 122)
™
Pro-Set (TIG/stick) eliminates the guesswork when setting weld parameters.
Protective Cover 301524 (pg 125)
Use Pro-Set when you want the speed, convenience and confidence of
Wireless Remote Foot Control
preset controls. 301580 (pg 129)
Two shielding gas connections (one for MIG gas and one for TIG gas) Visit MillerWelds.com or your distributor
for other Miller® options and accessories.
so both gases can be left connected to the machine — no switching needed.
Manual mode offers additional TIG adjustments for increased control
including AC balance, AC frequency and DC pulsing.
TIG high-frequency (HF) arc starting for non-contact arc initiation, reducing
tungsten and material contamination.
Uses 4- or 8-inch (102 or 203 mm) spools.
Stock Number Welding Input Amperage Amps Input at Rated Output, 50/60 Hz Max. Open- Net
907757 Mode/Process Power Range Rated Output 120 V 240 V KVA KW Wire Feed Speed Circuit Voltage Dimensions Weight
951000070 CV: MIG/ 120 V 30–125 105 A at 19.2 V, 60% duty cycle 23.3 — 2.8 2.8 60–600 ipm 45 VDC H: 17.5 in. (445 mm) 56 lb.
With dual cylinder flux-cored (1.5–15.2 m/min.) W: 11.25 in. (286 mm) (25.3 kg)
240 V 30–230 200 A at 24 V, 20% duty cycle — 27.2 4.8 4.8
rack cart D: 21.5 in. (546 mm)
170 A at 21.5 V, 40% duty cycle — 21.5 3.8 3.8
CC: TIG 120 V 20–140 130 A at 15.2 V, 40% duty cycle 24.0 — 2.9 2.9 — 46 VDC
240 V 20–210 210 A at 18.4 V, 20% duty cycle — 22.4 5.4 5.4
CC: Stick 120 V 30–90 90 A at 23.6 V, 40% duty cycle 24.5 — 2.9 2.9
240 V 30–200 200 A at 28.4 V, 15% duty cycle — 31.3 7.5 7.5
42
