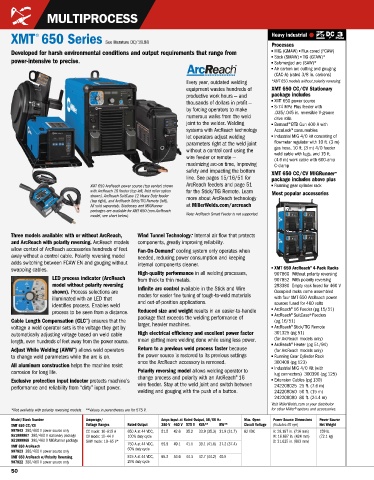

Page 50 - millerwelds catalog_2022

A FLE24 Cat P 50 MP.qxp_Multiprocess 1/11/24 5:34 PM Page 1

MULTIPROCESS

® Heavy industrial
XMT 650 Series See literature DC/18.98
Processes
Developed for harsh environmental conditions and output requirements that range from MIG (GMAW) Flux-cored (FCAW)
Stick (SMAW) TIG (GTAW)*
power-intensive to precise. Submerged arc (SAW)*
Air carbon arc cutting and gouging
(CAC-A) (rated 3/8 in. carbons)
Every year, outdated welding *XMT 650 models without polarity reversing.
equipment wastes hundreds of XMT 650 CC/CV Stationary
productive work hours — and package includes
thousands of dollars in profit — XMT 650 power source
S-74 MPa Plus feeder with
by forcing operators to make
.035/.045 in. reversible V-groove
numerous walks from the weld
drive rolls
joint to the welder. Welding Bernard® BTB Gun 400 A with
systems with ArcReach technology AccuLock ™ consumables
let operators adjust welding Industrial MIG 4/0 kit consisting of
parameters right at the weld joint flowmeter regulator with 10 ft. (3 m)
gas hose, 10 ft. (3 m) 4/0 feeder
without a control cord using the
weld cable with lugs, and 15 ft.
wire feeder or remote —
(4.6 m) work cable with 600-amp
maximizing arc-on time, improving C-clamp
safety and impacting the bottom
XMT 650 CC/CV MIGRunner ™
line. See pages 15/16/51 for package includes above plus
XMT 650 ArcReach power source (top center) shown ArcReach feeders and page 51 Running gear cylinder rack
with ArcReach 16 feeder (top left, field roller option for the Stick/TIG Remote. Learn
shown), ArcReach SuitCase 12 Heavy Duty feeder more about ArcReach technology Most popular accessories
(top right), and ArcReach Stick/TIG Remote (left).
All sold separately. Stationary and MIGRunner at MillerWelds.com/arcreach
packages are available for XMT 650 (non-ArcReach
model, see chart below). Note: ArcReach Smart Feeder is not supported.
Three models available: with or without ArcReach, Wind Tunnel Technology. Internal air flow that protects
™
and ArcReach with polarity reversing. ArcReach models components, greatly improving reliability.
allow control of ArcReach accessories hundreds of feet Fan-On-Demand cooling system only operates when
™
away without a control cable. Polarity reversing model needed, reducing power consumption and keeping
adds switching between FCAW EN and gouging without internal components cleaner.
swapping cables. XMT 650 ArcReach ® 4-Pack Racks
High-quality performance in all welding processes, 907860 Without polarity reversing
LED process indicator (ArcReach from thick to thin metals. 907852 With polarity reversing
model without polarity reversing 293380 Empty rack fused for 460 V
Infinite arc control available in the Stick and Wire
shown). Process selections are Occupied racks come assembled
modes for easier fine tuning of tough-to-weld materials
illuminated with an LED that with four XMT 650 ArcReach power
and out-of-position applications. sources fused for 460 volts
identifies process. Enables weld
process to be seen from a distance. Reduced size and weight results in an easier-to-handle ArcReach ® 16 Feeder (pg 15/51)
ArcReach ® SuitCase® Feeders
package that exceeds the welding performance of
Cable Length Compensation (CLC ) ensures that the (pg 16/51)
™
larger, heavier machines.
voltage a weld operator sets is the voltage they get by ArcReach ® Stick/TIG Remote
automatically adjusting voltage based on weld cable High electrical efficiency and excellent power factor 301325 (pg 51)
length, even hundreds of feet away from the power source. mean getting more welding done while using less power. (for ArcReach models only)
ArcReach® Heater (pg 51/94)
Adjust While Welding (AWW ) allows weld operators Return to a previous weld process faster because (for ArcReach models only)
™
to change weld parameters while the arc is on. the power source is restored to its previous settings Running Gear Cylinder Rack
once the ArcReach accessory is removed. 300408 (pg 123)
All aluminum construction helps the machine resist Industrial MIG 4/0 Kit (with
corrosion for long life. Polarity reversing model allows welding operator to lug connectors) 300390 (pg 125)
change process and polarity with an ArcReach 16
®
Exclusive protection input inductor protects machine’s Extension Cables (pg 130)
wire feeder. Stay at the weld joint and switch between 242208025 25 ft. (7.6 m)
performance and reliability from “dirty” input power.
welding and gouging with the push of a button. 242208050 50 ft. (15 m)
242208080 80 ft. (24.4 m)
Visit MillerWelds.com or your distributor
*Not available with polarity reversing models. **Values in parentheses are for 575 V. for other Miller®options and accessories.
Model/Stock Number Amperage/ Amps Input at Rated Output, 50/60 Hz Max. Open- Power Source Dimensions Power Source
XMT 650 CC/CV Voltage Ranges Rated Output 380 V 460 V 575 V KVA** KW** Circuit Voltage (Includes lift eye) Net Weight
907843 380/460 V power source only CC mode: 10–815 A 650 A at 44 VDC, 51.5 42.6 35.2 33.9 (35.3) 31.9 (31.7) 82 VDC H: 28.187 in. (716 mm) 159 lb.
951000067 380/460 V stationary package CV mode: 10–44 V 100% duty cycle W: 16.687 in. (424 mm) (72.1 kg)
951000068 380/460 V MIGRunner package SAW mode: 10–65 V* D: 31.625 in. (803 mm)
XMT 650 ArcReach 750 A at 44 VDC, 59.9 49.1 41.1 39.1 (41.0) 37.2 (37.4)
60% duty cycle
907823 380/460 V power source only
XMT 650 ArcReach w/Polarity Reversing 815 A at 44 VDC, 65.3 53.6 44.3 42.7 (44.2) 40.5
907822 380/460 V power source only 25% duty cycle
