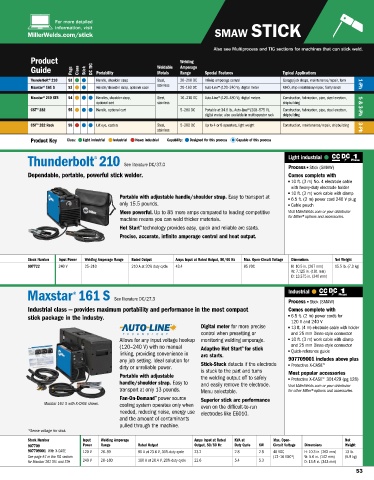

Page 53 - millerwelds catalog_2022

A FLE24 Cat P 53 Stick Intro.qxp_Stick 1/11/24 5:35 PM Page 1

For more detailed
information, visit SMAW STICK
MillerWelds.com/stick

Also see Multiprocess and TIG sections for machines that can stick weld.
Product
Weldable Amperage
Guide Page Class Stick DC TIG Welding
Portability Metals Range Special Features Typical Applications
Thunderbolt® 210 53 Handle, shoulder strap Steel, 20–210 DC Infinite amperage control Garage/job shops, maintenance/repair, farm
Maxstar® 161 S 53 Handle/shoulder strap, optional case stainless 20–160 DC Auto-Line ™ (120–240 V), digital meter MRO, ship installation/repair, farm/ranch 1-Ph
Maxstar® 210 STR 54 Handles, shoulder strap, Steel, 10–210 DC Auto-Line ™ (120–480 V), digital meters Construction, fabrication, pipe, steel erection,
optional cart stainless shipbuilding
CST ™ 282 55 Handle, optional cart 5–280 DC Portable at 34.6 lb., Auto-Line ™ (208–575 V), Construction, fabrication, pipe, steel erection, 1-& 3-Ph
digital meter, also available in multioperator rack shipbuilding
CST ™ 282 Rack 55 Lift eye, casters Steel, 5–280 DC Up to 4 or 8 operators, light weight Construction, maintenance/repair, shipbuilding
stainless 3-Ph
Product Key Class: Light industrial Industrial Heavy industrial Capability: Designed for this process Capable of this process

® Light industrial
Thunderbolt 210 See literature DC/37.0
Process Stick (SMAW)
Dependable, portable, powerful stick welder. Comes complete with
10 ft. (3 m) No. 4 electrode cable
with heavy-duty electrode holder
10 ft. (3 m) work cable with clamp
Portable with adjustable handle/shoulder strap. Easy to transport at
6.5 ft. (2 m) power cord 240 V plug
only 15.5 pounds. Cable pouch
More powerful. Up to 85 more amps compared to leading competitive Visit MillerWelds.com or your distributor
for Miller®options and accessories.
machine means you can weld thicker materials.
Hot Start technology provides easy, quick and reliable arc starts.
™
Precise, accurate, infinite amperage control and heat output.

Stock Number Input Power Welding Amperage Range Rated Output Amps Input at Rated Output, 50/60 Hz Max. Open-Circuit Voltage Dimensions Net Weight
907722 240 V 25–210 210 A at 20% duty cycle 43.4 85 VDC H: 10.5 in. (267 mm) 15.5 lb. (7.0 kg)
W: 7.125 in. (181 mm)
D: 13.375 in. (340 mm)

® Industrial
Maxstar 161 S See literature DC/27.3
Process Stick (SMAW)
Industrial class — provides maximum portability and performance in the most compact Comes complete with
stick package in the industry. 6.5 ft. (2 m) power cords for
120 V and 240 V
Digital meter for more precise 13 ft. (4 m) electrode cable with holder
control when presetting or and 25 mm Dinse-style connector
Allows for any input voltage hookup monitoring welding amperage. 10 ft. (3 m) work cable with clamp
(120–240 V) with no manual Adaptive Hot Start for stick and 25 mm Dinse-style connector
™
linking, providing convenience in arc starts. Quick-reference guide
any job setting. Ideal solution for 907709001 includes above plus
Stick-Stuck detects if the electrode Protective X-CASE ™
dirty or unreliable power.
is stuck to the part and turns Most popular accessories
Portable with adjustable the welding output off to safely Protective X-CASE ™ 301429 (pg 128)
handle/shoulder strap. Easy to and easily remove the electrode. Visit MillerWelds.com or your distributor
transport at only 13 pounds. Menu selectable. for other Miller®options and accessories.
™
Fan-On-Demand power source Superior stick arc performance
Maxstar 161 S with X-CASE shown. cooling system operates only when even on the difficult-to-run
needed, reducing noise, energy use electrodes like E6010.
and the amount of contaminants
pulled through the machine.
*Sense voltage for stick.
Stock Number Input Welding Amperage Amps Input at Rated KVA at Max. Open- Net
907709 Power Range Rated Output Output, 50/60 Hz Duty Cycle KW Circuit Voltage Dimensions Weight
907709001 With X-CASE 120 V 20–90 90 A at 23.6 V, 30% duty cycle 23.2 2.8 2.8 48 VDC H: 10.3 in. (262 mm) 13 lb.
See page 57 in the TIG section (12–16 VDC*) W: 5.6 in. (142 mm) (5.9 kg)
for Maxstar 161 STL and STH 240 V 20–160 160 A at 26.4 V, 20% duty cycle 22.6 5.4 5.3 D: 13.5 in. (343 mm)
53
