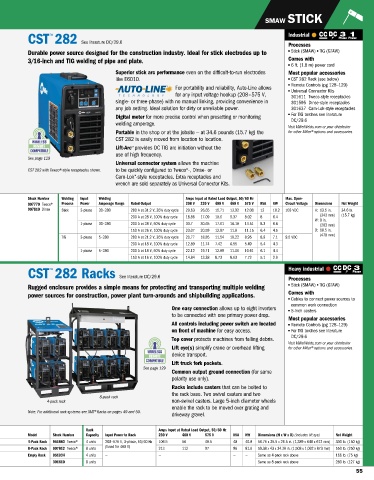

Page 55 - millerwelds catalog_2022

A FLE24 Cat P 55 Stick.qxp_Stick 1/11/24 5:36 PM Page 1

SMAW STICK

™ Industrial
CST 282 See literature DC/29.6
Processes
Durable power source designed for the construction industry. Ideal for stick electrodes up to Stick (SMAW) TIG (GTAW)
3/16-inch and TIG welding of pipe and plate. Comes with
6 ft. (1.8 m) power cord
Superior stick arc performance even on the difficult-to-run electrodes Most popular accessories
like E6010. CST 282 Rack (see below)
Remote Controls (pg 128–129)
For portability and reliability, Auto-Line allows
Universal Connector Kits
for any input voltage hookup (208–575 V,
301611 Tweco-style receptacles
single- or three-phase) with no manual linking, providing convenience in 301595 Dinse-style receptacles
any job setting. Ideal solution for dirty or unreliable power. 301637 Cam-Lok-style receptacles
For TIG torches see literature
Digital meter for more precise control when presetting or monitoring
DC/29.6
welding amperage.
Visit MillerWelds.com or your distributor
Portable in the shop or at the jobsite — at 34.6 pounds (15.7 kg) the for other Miller®options and accessories.
CST 282 is easily moved from location to location.
Lift-Arc provides DC TIG arc initiation without the
™
use of high frequency.
See page 129
Universal connector system allows the machine
CST 282 with Tweco®-style receptacles shown. to be quickly configured to Tweco ®-, Dinse- or
Cam-Lok -style receptacles. Extra receptacles and
™
wrench are sold separately as Universal Connector Kits.
Stock Number Welding Input Welding Amps Input at Rated Load Output, 50/60 Hz Max. Open-
907770 Tweco® Process Power Amperage Range Rated Output 208 V 230 V 400 V 460 V 575 V KVA KW Circuit Voltage Dimensions Net Weight
907810 Dinse Stick 3-phase 30–280 280 A at 31.2 V, 35% duty cycle 29.63 26.65 15.71 13.92 12.08 12 10.2 103 VDC H: 13.5 in. 34.6 lb.
(343 mm) (15.7 kg)
200 A at 28 V, 100% duty cycle 18.86 17.09 10.6 9.37 8.02 8 6.4
W: 8 in.
1-phase 30–280 200 A at 28 V, 50% duty cycle 33.7 30.65 17.61 16.18 14.51 8.3 6.6 (203 mm)
150 A at 26 V, 100% duty cycle 23.07 20.59 12.97 11.8 11.15 6.4 4.5 D: 18.5 in.
(470 mm)
TIG 3-phase 5–280 280 A at 21.2 V, 35% duty cycle 20.77 18.85 11.54 10.22 8.95 8.9 7.1 9.5 VDC
200 A at 18 V, 100% duty cycle 12.89 11.74 7.42 6.55 5.49 5.4 4.3
1-phase 5–280 200 A at 18 V, 50% duty cycle 22.12 19.71 12.89 11.06 10.61 6.1 4.4
150 A at 16 V, 100% duty cycle 14.84 13.38 8.73 8.63 7.72 5.1 2.9
™ Heavy industrial
CST 282 Racks See literature DC/29.6
Processes
Rugged enclosure provides a simple means for protecting and transporting multiple welding Stick (SMAW) TIG (GTAW)
power sources for construction, power plant turn-arounds and shipbuilding applications. Comes with
Cables to connect power sources to
common work connection
One easy connection allows up to eight inverters
5-inch casters
to be connected with one primary power drop.
Most popular accessories
All controls including power switch are located Remote Controls (pg 128–129)
on front of machine for easy access. For TIG torches see literature
DC/29.6
Top cover protects machines from falling debris.
Visit MillerWelds.com or your distributor
Lift eye(s) simplify crane or overhead lifting for other Miller®options and accessories.
device transport.
Lift truck fork pockets.
See page 129
Common output ground connection (for same
polarity use only).
Racks include casters that can be bolted to
the rack base. Two swivel casters and two
8-pack rack
4-pack rack non-swivel casters. Large 5-inch diameter wheels
enable the rack to be moved over grating and
Note: For additional rack systems see XMT® Racks on pages 49 and 50.
driveway gravel.
Rack Amps Input at Rated Load Output, 50/60 Hz
Model Stock Number Capacity Input Power to Rack 230 V 460 V 575 V KVA KW Dimensions (H x W x D) (Includes lift eye) Net Weight
4-Pack Rack 951883 Tweco® 4 units 208–575 V, 3-phase, 50/60 Hz 106.5 56 48.5 48 40.8 50.75 x 25.5 x 26.5 in. (1,289 x 648 x 673 mm) 330 lb. (150 kg)
8-Pack Rack 907812 Tweco® 8 units (fused for 460 V) 213 112 97 96 81.6 59.38 x 43 x 34.38 in. (1,508 x 1,092 x 873 mm) 550 lb. (250 kg)
Empty Rack 951934 4 units — — — — Same as 4-pack rack above 166 lb. (75 kg)
301610 8 units Same as 8-pack rack above 280 lb. (127 kg)
