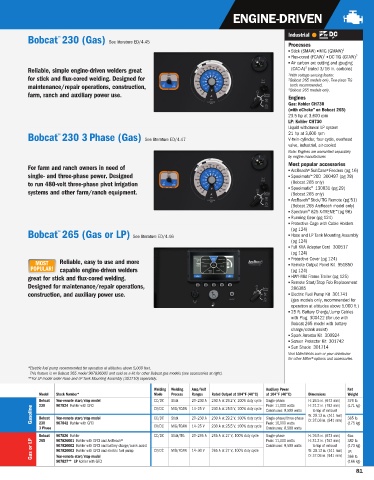

Page 81 - millerwelds catalog_2022

A FLE24 Cat P 81 Engine.qxp_Engine 1/11/24 5:48 PM Page 1

ENGINE-DRIVEN

Industrial
™
Bobcat 230 (Gas) See literature ED/4.45
Processes
Stick (SMAW) MIG (GMAW) 1
1
Flux-cored (FCAW) DC TIG (GTAW) 2
Air carbon arc cutting and gouging
3
Reliable, simple engine-driven welders great (CAC-A) (rated 3/16 in. carbons)
1 With voltage-sensing feeder.
for stick and flux-cored welding. Designed for 2 Bobcat 265 models only. Two-piece TIG
maintenance/repair operations, construction, torch recommended.
3 Bobcat 265 models only.
farm, ranch and auxiliary power use. Engines
Gas: Kohler CH730
(with eChoke ™ on Bobcat 265)
23.5 hp at 3,600 rpm
LP: Kohler CH730
Liquid withdrawal LP system
21 hp at 3,600 rpm
™
Bobcat 230 3 Phase (Gas) See literature ED/4.47 V-twin-cylinder, four-cycle, overhead
valve, industrial, air-cooled
Note: Engines are warrantied separately
by engine manufacturer.
Most popular accessories
For farm and ranch owners in need of
ArcReach® SuitCase® Feeders (pg 16)
single- and three-phase power. Designed Spoolmate ™ 200 300497 (pg 28)
to run 480-volt three-phase pivot irrigation (Bobcat 265 only)
Spoolmatic® 130831 (pg 29)
systems and other farm/ranch equipment. (Bobcat 265 only)
ArcReach® Stick/TIG Remote (pg 51)
(Bobcat 265 ArcReach model only)
Spectrum® 625 X-TREME (pg 96)
™
Running Gear (pg 124)
Protective Cage with Cable Holders
(pg 124)
™
Bobcat 265 (Gas or LP) See literature ED/4.46 Hose and LP Tank Mounting Assembly
(pg 124)
Full KVA Adapter Cord 300517
(pg 124)
Protective Cover (pg 124)
MOST Reliable, easy to use and more Remote Output Panel Kit 951850
POPULAR! capable engine-driven welders (pg 124)
great for stick and flux-cored welding. HWY-Mid Frame Trailer (pg 125)
Remote Start/Stop Fob Replacement
Designed for maintenance/repair operations, 286385
construction, and auxiliary power use. Electric Fuel Pump Kit 301741
(gas models only, recommended for
operation at altitudes above 5,000 ft.)
25 ft. Battery Charge/Jump Cables
with Plug 300422 (for use with
Bobcat 265 model with battery
charge/crank assist)
Spark Arrestor Kit 300924
Screen Protector Kit 301742
Sun Shade 301714
Visit MillerWelds.com or your distributor
for other Miller®options and accessories.
*Electric fuel pump recommended for operation at altitudes above 5,000 feet.
This feature is on Bobcat 265 model 907826002 and sold as a kit for other Bobcat gas models (see accessories at right).
**For LP model order Hose and LP Tank Mounting Assembly (301710) separately.
Welding Welding Amp/Volt Auxiliary Power Net
Model Stock Number* Mode Process Ranges Rated Output at 104°F (40°C) at 104°F (40°C) Dimensions Weight
Bobcat Non-remote start/stop model CC/DC Stick 20–230 A 230 A at 29.2 V, 100% duty cycle Single-phase H: 26.5 in. (673 mm) 376 lb.
907824 Kohler with GFCI
(171 kg)
Peak: 11,000 watts
230
H: 31.2 in. (792 mm)
Gasoline Bobcat Non-remote start/stop model CV/DC MIG/FCAW 14–25 V 230 A at 25.5 V, 100% duty cycle Continuous: 9,500 watts W: 20.13 in. (511 mm) 385 lb.
to top of exhaust
20–230 A
230 A at 29.2 V, 100% duty cycle
Stick
CC/DC
Single-phase/three-phase
D: 37.06 in. (941 mm)
230
907842 Kohler with GFCI
CV/DC MIG/FCAW 14–25 V 230 A at 25.5 V, 100% duty cycle Peak: 10,000 watts (175 kg)
3 Phase Continuous: 8,500 watts
Bobcat 907826 Kohler CC/DC Stick/TIG 20–265 A 265 A at 27 V, 100% duty cycle Single-phase H: 26.5 in. (673 mm) Gas:
Gas or LP 907826002 Kohler with GFCI and battery charge/crank assist CV/DC MIG/FCAW 14–30 V 265 A at 27 V, 100% duty cycle Continuous: 9,500 watts W: 20.13 in. (511 mm) (173 kg)
H: 31.2 in. (792 mm)
382 lb.
Peak: 11,000 watts
265
907826001 Kohler with GFCI and ArcReach®
to top of exhaust
907826003 Kohler with GFCI and electric fuel pump
LP:
Non-remote start/stop model
(166 kg)
907827** LP Kohler with GFCI D: 37.06 in. (941 mm) 366 lb.
