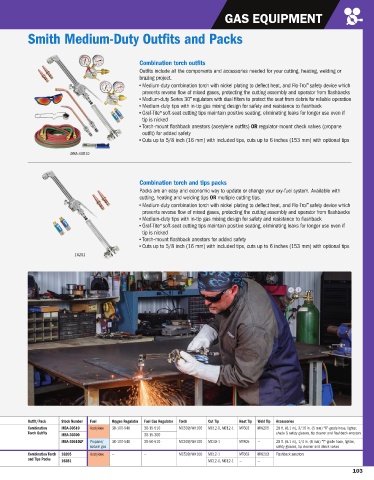

GAS EQUIPMENT

Smith Medium-Duty Outfits and Packs

Combination torch outfits
Outfits include all the components and accessories needed for your cutting, heating, welding or
brazing project.
™
Medium-duty combination torch with nickel plating to deflect heat, and Flo-Trol safety device which
prevents reverse flow of mixed gases, protecting the cutting assembly and operator from flashbacks
Medium-duty Series 30 regulators with dual filters to protect the seat from debris for reliable operation
™
Medium-duty tips with in-tip gas mixing design for safety and resistance to flashback
Graf-Tite soft-seat cutting tips maintain positive seating, eliminating leaks for longer use even if
™
tip is nicked
Torch-mount flashback arrestors (acetylene outfits) OR regulator-mount check valves (propane
outfit) for added safety
Cuts up to 5/8 inch (16 mm) with included tips, cuts up to 6 inches (153 mm) with optional tips

MBA-30510

Combination torch and tips packs
Packs are an easy and economic way to update or change your oxy-fuel system. Available with
cutting, heating and welding tips OR multiple cutting tips.
™
Medium-duty combination torch with nickel plating to deflect heat, and Flo-Trol safety device which
prevents reverse flow of mixed gases, protecting the cutting assembly and operator from flashbacks
Medium-duty tips with in-tip gas mixing design for safety and resistance to flashback
Graf-Tite soft-seat cutting tips maintain positive seating, eliminating leaks for longer use even if
™
tip is nicked
Torch-mount flashback arrestors for added safety
Cuts up to 5/8 inch (16 mm) with included tips, cuts up to 6 inches (153 mm) with optional tips
16281

Outfit/Pack Stock Number Fuel Oxygen Regulator Fuel Gas Regulator Torch Cut Tip Heat Tip Weld Tip Accessories
Combination MBA-30510 Acetylene 30-100-540 30-15-510 MC509/WH100 MC12-0, MC12-1 MT603 MW205 20 ft. (6.1 m), 3/16 in. (5 mm) “R”-grade hose, lighter,
Torch Outfits shade 5 safety glasses, tip cleaner and flashback arrestors
MBA-30300 30-15-300
MBA-30510LP Propane/ 30-100-540 30-50-510 MC509/WH100 MC40-1 MT805 — 20 ft. (6.1 m), 1/4 in. (6 mm) “T”-grade hose, lighter,
natural gas safety glasses, tip cleaner and check valves
Combination Torch 16205 Acetylene — — MC509/WH100 MC12-1 MT603 MW203 Flashback arrestors
and Tips Packs
16281 MC12-0, MC12-1 — —
