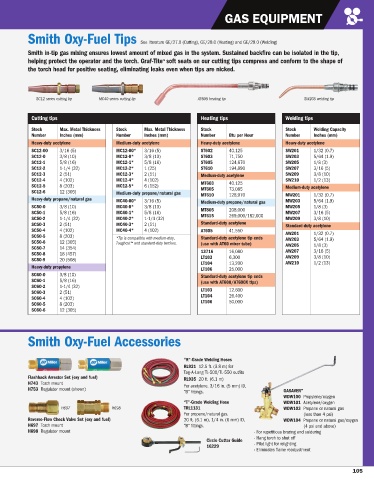

GAS EQUIPMENT

Smith Oxy-Fuel Tips See literature GE/27.0 (Cutting), GE/28.0 (Heating) and GE/29.0 (Welding)
Smith in-tip gas mixing ensures lowest amount of mixed gas in the system. Sustained backfire can be isolated in the tip,
helping protect the operator and the torch. Graf-Tite soft seats on our cutting tips compress and conform to the shape of
™
the torch head for positive seating, eliminating leaks even when tips are nicked.

SC12 series cutting tip MC40 series cutting tip AT605 heating tip SW205 welding tip

Cutting tips Heating tips Welding tips
Stock Max. Metal Thickness Stock Max. Metal Thickness Stock Stock Welding Capacity
Number Inches (mm) Number Inches (mm) Number Btu per Hour Number Inches (mm)
Heavy-duty acetylene Medium-duty acetylene Heavy-duty acetylene Heavy-duty acetylene
SC12-00 3/16 (5) MC12-00* 3/16 (5) ST602 40,125 SW201 1/32 (0.7)
SC12-0 3/8 (10) MC12-0* 3/8 (10) ST603 71,750 SW203 5/64 (1.9)
SC12-1 5/8 (16) MC12-1* 5/8 (16) ST605 124,670 SW205 1/8 (3)
SC12-2 1-1/4 (32) MC12-2* 1 (25) ST610 194,890 SW207 3/16 (5)
SC12-3 2 (51) MC12-3* 2 (51) Medium-duty acetylene SW209 3/8 (10)
SC12-4 4 (102) MC12-4* 4 (102) SW210 1/2 (13)
SC12-5 8 (203) MC12-5* 6 (152) MT603 40,125 Medium-duty acetylene
MT605 73,085
SC12-6 12 (305) Medium-duty propane/natural gas MT610 128,970 MW201 1/32 (0.7)
Heavy-duty propane/natural gas
MC40-00* 3/16 (5) Medium-duty propane/natural gas MW203 5/64 (1.9)
SC50-0 3/8 (10) MC40-0* 3/8 (10) MW205 1/8 (3)
SC50-1 5/8 (16) MC40-1* 5/8 (16) MT805 208,000 MW207 3/16 (5)
MT615 269,000/182,000
SC50-2 1-1/4 (32) MC40-2* 1-1/4 (32) MW209 3/8 (10)
SC50-3 2 (51) MC40-3* 2 (51) Standard-duty acetylene Standard-duty acetylene
SC50-4 4 (102) MC40-4* 4 (102) AT605 41,550
SC50-5 8 (203) AW201 1/32 (0.7)
*Tip is compatible with medium-duty, Standard-duty acetylene tip ends AW203 5/64 (1.9)
SC50-6 12 (305) Toughcut ™ and standard-duty torches. (use with AT60 mixer tube)
SC50-7 14 (354) AW205 1/8 (3)
13716 16,080 AW207 3/16 (5)
SC50-8 18 (457)
LT103 6,300 AW209 3/8 (10)
SC50-9 20 (508)
LT104 13,200 AW210 1/2 (13)
Heavy-duty propylene
LT106 25,000
SC60-0 3/8 (10)
Standard-duty acetylene tip ends
SC60-1 5/8 (16) (use with AT600/AT600X tips)
SC60-2 1-1/4 (32)
LT103 12,600
SC60-3 2 (51)
LT104 26,400
SC60-4 4 (102)
LT106 50,000
SC60-5 8 (203)
SC60-6 12 (305)
Smith Oxy-Fuel Accessories
“R”-Grade Welding Hoses
RL921 12.5 ft. (3.8 m) for
Tag-A-Long TL-500/TL-550 outfits
Flashback Arrestor Set (oxy and fuel) RL935 20 ft. (6.1 m)
H743 Torch mount For acetylene. 3/16 in. (5 mm) ID,
H753 Regulator mount (shown) GASAVER ™
“B” fittings.
WDW100 Propylene/oxygen
“T”-Grade Welding Hose WDW101 Acetylene/oxygen
H697 H698 TRL1131 WDW103 Propane or natural gas
For propane/natural gas. (less than 4 psi)
Reverse-Flow Check Valve Set (oxy and fuel) 20 ft. (6.1 m), 1/4 in. (6 mm) ID, WDW104 Propane or natural gas/oxygen
H697 Torch mount “B” fittings. (4 psi and above)
H698 Regulator mount - For repetitious brazing and soldering
- Hang torch to shut off
Circle Cutter Guide
- Pilot light for relighting
16229
- Eliminates flame readjustment
