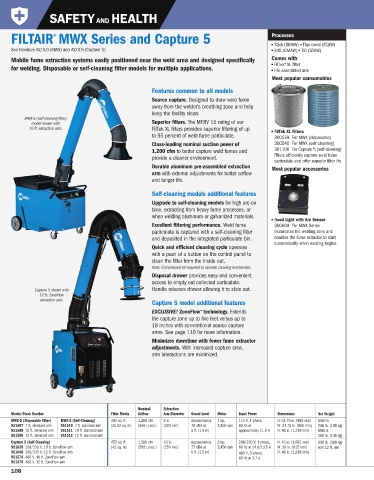

SAFETY AND HEALTH

®
FILTAIR MWX Series and Capture 5 Processes
Stick (SMAW) Flux-cored (FCAW)
See literature AY/3.0 (MWX) and AY/3.5 (Capture 5) MIG (GMAW) TIG (GTAW)
Mobile fume extraction systems easily positioned near the weld area and designed specifically Comes with
FilTek® XL filter
for welding. Disposable or self-cleaning filter models for multiple applications. Pre-assembled arm
Most popular consumables

Features common to all models
Source capture. Designed to draw weld fume
away from the welder’s breathing zone and help
keep the facility clean.
MWX-S (self-cleaning filter)
model shown with Superior filters. The MERV 15 rating of our
10 ft. extraction arm. FilTek XL filters provides superior filtering of up
FilTek XL Filters
to 95 percent of weld fume particulate. 300539 For MWX (disposable)
Class-leading nominal suction power of 300540 For MWX (self-cleaning)
1,200 cfm to better capture weld fumes and 301106 For Capture 5 (self-cleaning)
Filters efficiently capture weld fume
provide a cleaner environment.
particulate and offer superior filter life
Durable aluminum pre-assembled extraction
Most popular accessories
arm with external adjustments for better airflow
and longer life.
Self-cleaning models additional features
Upgrade to self-cleaning models for high arc-on
time, extracting from heavy fume processes, or
when welding aluminum or galvanized materials.
Hood Light with Arc Sensor
Excellent filtering performance. Weld fume 300689 For MWX Series
particulate is captured with a self-cleaning filter Illuminates the welding zone and
and deposited in the integrated particulate bin. enables the fume extractor to start
automatically when welding begins
Quick and efficient cleaning cycle operates
with a push of a button on the control panel to
clean the filter from the inside out.
Note: Compressed air required to operate cleaning mechanism.
Disposal drawer provides easy and convenient
access to empty out collected particulate.
Capture 5 shown with Handle releases drawer allowing it to slide out.
12 ft. ZoneFlow
extraction arm.
Capture 5 model additional features
EXCLUSIVE! ZoneFlow technology. Extends
™
the capture zone up to five feet versus up to
18 inches with conventional source capture
arms. See page 110 for more information.
Minimizes downtime with fewer fume extractor
adjustments. With increased capture area,
arm interactions are minimized.

Nominal Extraction
Model/Stock Number Filter Media Airflow Arm Diameter Sound Level Motor Input Power Dimensions Net Weight
MWX-D (Disposable Filter) MWX-S (Self-Cleaning) 490 sq. ft. 1,200 cfm 8 in. Approximately 1 hp, 115 V, 1-phase, H: 34.75 in. (883 mm) MWX-D:
951507 7 ft. standard arm 951510 7 ft. standard arm (45.52 sq. m) (566 L/sec.) (203 mm) 70 dBA at 3,450 rpm 60 Hz at W: 31.75 in. (806 mm) 238 lb. (108 kg)
951508 10 ft. standard arm 951511 10 ft. standard arm 5 ft. (1.5 m) approximately 11.9 A D: 48 in. (1,219 mm) MWX-S:
951509 12 ft. standard arm 951512 12 ft. standard arm 300 lb. (136 kg)
Capture 5 (Self-Cleaning) 452 sq. ft. 1,200 cfm 10 in. Approximately 3 hp, 208/230 V, 1-phase, H: 43 in. (1,092 mm) 660 lb. (300 kg)
951639 208/230 V, 10 ft. ZoneFlow arm (42 sq. m) (566 L/sec.) (254 mm) 77 dBA at 3,450 rpm 60 Hz at 14.6/13.5 A W: 36 in. (915 mm) with 12 ft. arm
951640 208/230 V, 12 ft. ZoneFlow arm 5 ft. (1.5 m) 460 V, 3-phase, D: 48 in. (1,219 mm)
951574 460 V, 10 ft. ZoneFlow arm 60 Hz at 3.7 A
951575 460 V, 12 ft. ZoneFlow arm
108
