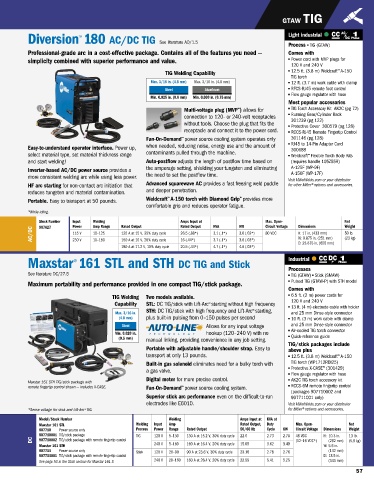

Page 57 - millerwelds catalog_2022

A FLE24 Cat P 57 TIG.qxp_TIG 1/11/24 5:37 PM Page 1

GTAW TIG

Light industrial
™
Diversion 180 AC/DC TIG See literature AD/1.5
Process TIG (GTAW)
Professional-grade arc in a cost-effective package. Contains all of the features you need — Comes with
simplicity combined with superior performance and value. Power cord with MVP plugs for
120 V and 240 V
12.5 ft. (3.8 m) Weldcraft ™ A-150
TIG Welding Capability
TIG torch
Max. 3/16 in. (4.8 mm) Max. 3/16 in. (4.8 mm) 12 ft. (3.7 m) work cable with clamp
Steel Aluminum RFCS-RJ45 remote foot control
Flow gauge regulator with hose
Min. 0.025 in. (0.6 mm) Min. 0.030 in. (0.75 mm)
Most popular accessories
Multi-voltage plug (MVP ) allows for TIG Torch Accessory Kit AK2C (pg 72)
™
Running Gear/Cylinder Rack
connection to 120- or 240-volt receptacles
301239 (pg 122)
without tools. Choose the plug that fits the
Protective Cover 300579 (pg 128)
receptacle and connect it to the power cord. RCCS-RJ45 Remote Fingertip Control
™
Fan-On-Demand power source cooling system operates only 301146 (pg 128)
RJ45 to 14-Pin Adapter Cord
Easy-to-understand operator interface. Power up, when needed, reducing noise, energy use and the amount of 300688
select material type, set material thickness range contaminants pulled through the machine. Weldcraft ™ Flexible Torch Body Kits
and start welding! Auto-postflow adjusts the length of postflow time based on (requires handle 105Z55R)
Inverter-based AC/DC power source provides a the amperage setting, shielding your tungsten and eliminating A-125F (WP-9F)
A-150F (WP-17F)
more consistent welding arc while using less power. the need to set the postflow time.
Visit MillerWelds.com or your distributor
Advanced squarewave AC provides a fast freezing weld puddle for other Miller®options and accessories.
HF arc starting for non-contact arc initiation that
and deeper penetration.
reduces tungsten and material contamination.
™
™
Weldcraft A-150 torch with Diamond Grip provides more
Portable. Easy to transport at 50 pounds.
comfortable grip and reduces operator fatigue.
*While idling.
Stock Number Input Welding Rated Output Amps Input at KVA KW Max. Open- Dimensions Net
Circuit Voltage
Weight
Power
Rated Output
Amp Range
907627
AC/DC 115 V 10–125 125 A at 15 V, 35% duty cycle 26.5 (.88*) 3.1 (.1*) 3.0 (.03*) 80 VDC H: 17 in. (433 mm) 50 lb.
(23 kg)
W: 9.875 in. (251 mm)
3.6 (.03*)
10–180
230 V
16 (.44*)
3.7 (.1*)
150 A at 16 V, 20% duty cycle
D: 23.875 in. (608 mm)
180 A at 17.2 V, 10% duty cycle 20.5 (.44*) 4.7 (.1*) 4.6 (.03*)
Industrial
®
Maxstar 161 STL and STH DC TIG and Stick
Processes
See literature DC/27.5 TIG (GTAW) Stick (SMAW)
Pulsed TIG (GTAW-P) with STH model
Maximum portability and performance provided in one compact TIG/stick package.
Comes with
6.5 ft. (2 m) power cords for
TIG Welding Two models available.
120 V and 240 V
Capability STL: DC TIG/stick with Lift-Arc starting without high frequency
™
13 ft. (4 m) electrode cable with holder
STH: DC TIG/stick with high frequency and Lift-Arc starting,
™
Max. 3/16 in. and 25 mm Dinse-style connector
(4.8 mm) plus built-in pulsing from 0–150 pulses per second 10 ft. (3 m) work cable with clamp
Steel Allows for any input voltage and 25 mm Dinse-style connector
Air-cooled TIG torch connector
Min. 0.020 in. hookup (120–240 V) with no
(0.5 mm) manual linking, providing convenience in any job setting. Quick-reference guide
TIG/stick packages include
Portable with adjustable handle/shoulder strap. Easy to above plus
transport at only 13 pounds. 12.5 ft. (3.8 m) Weldcraft A-150
™
Built-in gas solenoid eliminates need for a bulky torch with TIG torch (WP1712RDI25)
™
Protective X-CASE (301429)
a gas valve.
Flow gauge regulator with hose
Digital meter for more precise control. AK2C TIG torch accessory kit
Maxstar 161 STH TIG/stick package with
remote fingertip control shown — includes X-CASE. Fan-On-Demand power source cooling system. RCCS-6M remote fingertip control
™
(packages 907710002 and
Superior stick arc performance even on the difficult-to-run 907711001 only)
electrodes like E6010. Visit MillerWelds.com or your distributor
*Sense voltage for stick and Lift-Arc ™ TIG. for Miller®options and accessories.
Model/Stock Number Welding Amps Input at KVA at
Maxstar 161 STL Welding Input Amp Rated Output, Duty Max. Open- Net
907710 Power source only Process Power Range Rated Output 50/60 Hz Cycle KW Circuit Voltage Dimensions Weight
907710001 TIG/stick package TIG 120 V 5–130 130 A at 15.2 V, 30% duty cycle 22.6 2.73 2.70 48 VDC H: 10.3 in. 13 lb.
DC 907710002 TIG/stick package with remote fingertip control (12–16 VDC*) (262 mm) (5.9 kg)
Maxstar 161 STH 240 V 5–160 160 A at 16.4 V, 20% duty cycle 15.05 3.62 3.49 W: 5.6 in.
907711 Power source only Stick 120 V 20–90 90 A at 23.6 V, 30% duty cycle 23.16 2.78 2.76 (142 mm)
907711001 TIG/stick package with remote fingertip control D: 13.5 in.
240 V 20–160 160 A at 26.4 V, 20% duty cycle 22.55 5.41 5.25 (343 mm)
See page 53 in the Stick section for Maxstar 161 S
