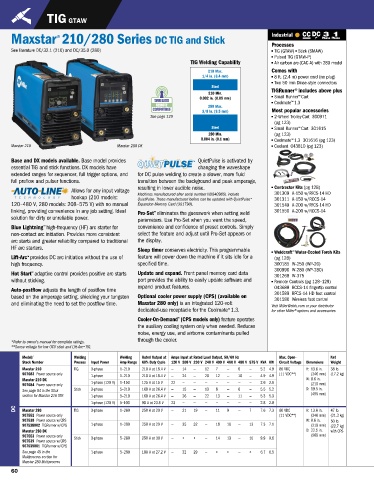

Page 60 - millerwelds catalog_2022

A FLE24 Cat P 60 TIG.qxp_TIG 1/11/24 5:38 PM Page 1

TIG GTAW

®
Maxstar 210/280 Series DC TIG and Stick Industrial
Processes
See literature DC/32.1 (210) and DC/35.0 (280) TIG (GTAW) Stick (SMAW)
Pulsed TIG (GTAW-P)
TIG Welding Capability Air carbon arc (CAC-A) with 280 model
210 Max. Comes with
1/4 in. (6.4 mm) 8 ft. (2.4 m) power cord (no plug)
Two 50 mm Dinse-style connectors
Steel
TIGRunner® includes above plus
210 Min.
™
Small Runner Cart
0.002 in. (0.05 mm)
Coolmate 1.3
™
280 Max.
3/8 in. (9.5 mm) Most popular accessories
See page 129 2-Wheel TrolleyCart 300971
(pg 123)
Steel Small Runner ™ Cart 301615
280 Min. (pg 123)
0.004 in. (0.1 mm) Coolmate ™ 1.3 301616 (pg 123)
Maxstar 210 Maxstar 280 DX Coolant 043810 (pg 123)
Base and DX models available. Base model provides QuietPulse is activated by
essential TIG and stick functions. DX models have changing the waveshape
extended ranges for sequencer, full trigger options, and for DC pulse welding to create a slower, more fluid
full preflow and pulser functions. transition between the background and peak amperage,
resulting in lower audible noise. Contractor Kits (pg 128)
Allows for any input voltage
Machines manufactured after serial number ND040985L include 301309 A-150 w/RFCS-14 HD
hookup (210 models: 301311 A-150 w/RCCS-14
QuietPulse. Those manufactured before can be updated with QuietPulse ™
120–480 V, 280 models: 208–575 V) with no manual Expansion Memory Card (301790). 301549 A-200 w/RFCS-14 HD
linking, providing convenience in any job setting. Ideal ™ 301550 A-200 w/RCCS-14
Pro-Set eliminates the guesswork when setting weld
solution for dirty or unreliable power.
parameters. Use Pro-Set when you want the speed,
™
Blue Lightning high-frequency (HF) arc starter for convenience and confidence of preset controls. Simply
non-contact arc initiation. Provides more consistent select the feature and adjust until Pro-Set appears on
arc starts and greater reliability compared to traditional the display.
HF arc starters.
Sleep timer conserves electricity. This programmable
Weldcraft ™ Water-Cooled Torch Kits
Lift-Arc provides DC arc initiation without the use of feature will power down the machine if it sits idle for a (pg 128)
™
high frequency. specified time. 300185 W-250 (WP-20)
300990 W-280 (WP-280)
Hot Start adaptive control provides positive arc starts Update and expand. Front panel memory card data
™
301268 W-375
without sticking. port provides the ability to easily update software and Remote Controls (pg 128–129)
expand product features. 043688 RCCS-14 fingertip control
Auto-postflow adjusts the length of postflow time
301589 RFCS-14 HD foot control
based on the amperage setting, shielding your tungsten Optional cooler power supply (CPS) (available on
301580 Wireless foot control
and eliminating the need to set the postflow time. Maxstar 280 only) is an integrated 120-volt
Visit MillerWelds.com or your distributor
dedicated-use receptacle for the Coolmate 1.3. for other Miller®options and accessories.
™
™
Cooler-On-Demand (CPS models only) feature operates
the auxiliary cooling system only when needed. Reduces
noise, energy use, and airborne contaminants pulled
through the cooler.
*Refer to owner’s manual for complete ratings.
**Sense voltage for low OCV stick and Lift-Arc ™ TIG.
Model/ Welding Welding Rated Output at Amps Input at Rated Load Output, 50/60 Hz Max. Open- Net
Stock Number Process Input Power Amp Range 60% Duty Cycle 120 V 208 V 230 V 240 V 400 V 460 V 480 V 575 V KVA KW Circuit Voltage Dimensions Weight
Maxstar 210 TIG 3-phase 1–210 210 A at 18.4 V — 14 — 12 7 — 6 — 5.2 4.9 80 VDC H: 13.6 in. 38 lb.
907683 Power source only (11 VDC**) (346 mm) (17.2 kg)
1-phase 1–210 210 A at 18.4 V — 24 — 20 12 — 10 — 4.9 4.9
Maxstar 210 DX W: 8.6 in.
1-phase (120 V) 1–150 125 A at 15 V 22 — — — — — — — 2.6 2.6
907684 Power source only (219 mm)
See page 54 in the Stick Stick 3-phase 5–210 160 A at 26.4 V — 15 — 13 8 — 6 — 5.5 5.2 D: 19.5 in.
section for Maxstar 210 STR 1-phase 5–210 160 A at 26.4 V — 26 — 22 13 — 11 — 5.3 5.3 (495 mm)
1-phase (120 V) 5–100 90 A at 23.6 V 23 — — — — — — — 2.8 2.8
DC Maxstar 280 TIG 3-phase 1–280 250 A at 20 V — 21 19 — 11 9 — 7 7.6 7.3 60 VDC H: 13.6 in. 47 lb.
907552 Power source only (11 VDC**) (346 mm) (21.3 kg)
907538 Power source w/CPS W: 8.6 in. 50 lb.
907538002 TIGRunner w/CPS 1-phase 1–280 250 A at 20 V — 35 32 — 18 16 — 13 7.3 7.1 (219 mm) (22.7 kg)
Maxstar 280 DX D: 22.5 in. with CPS
907553 Power source only (569 mm)
Stick 3-phase 5–280 250 A at 30 V — * * — 14 13 — 10 9.9 9.6
907539 Power source w/CPS
907539001 TIGRunner w/CPS
See page 45 in the 1-phase 5–280 180 A at 27.2 V — 32 29 — * * — * 6.7 6.5
Multiprocess section for
Maxstar 280 Multiprocess
